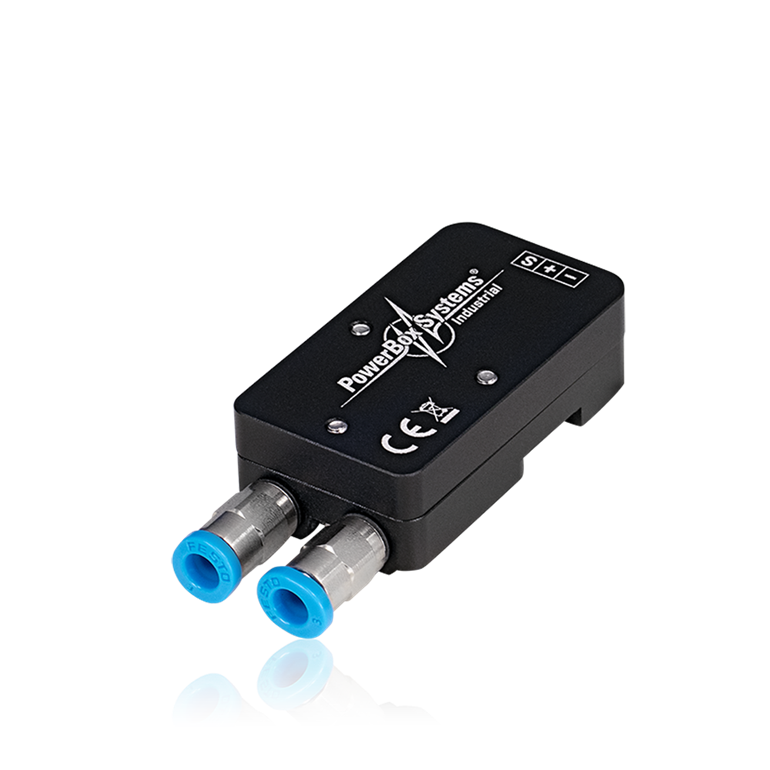

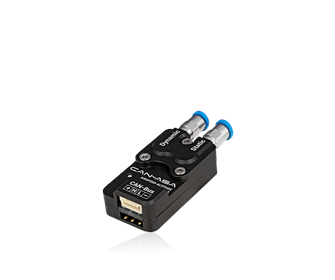

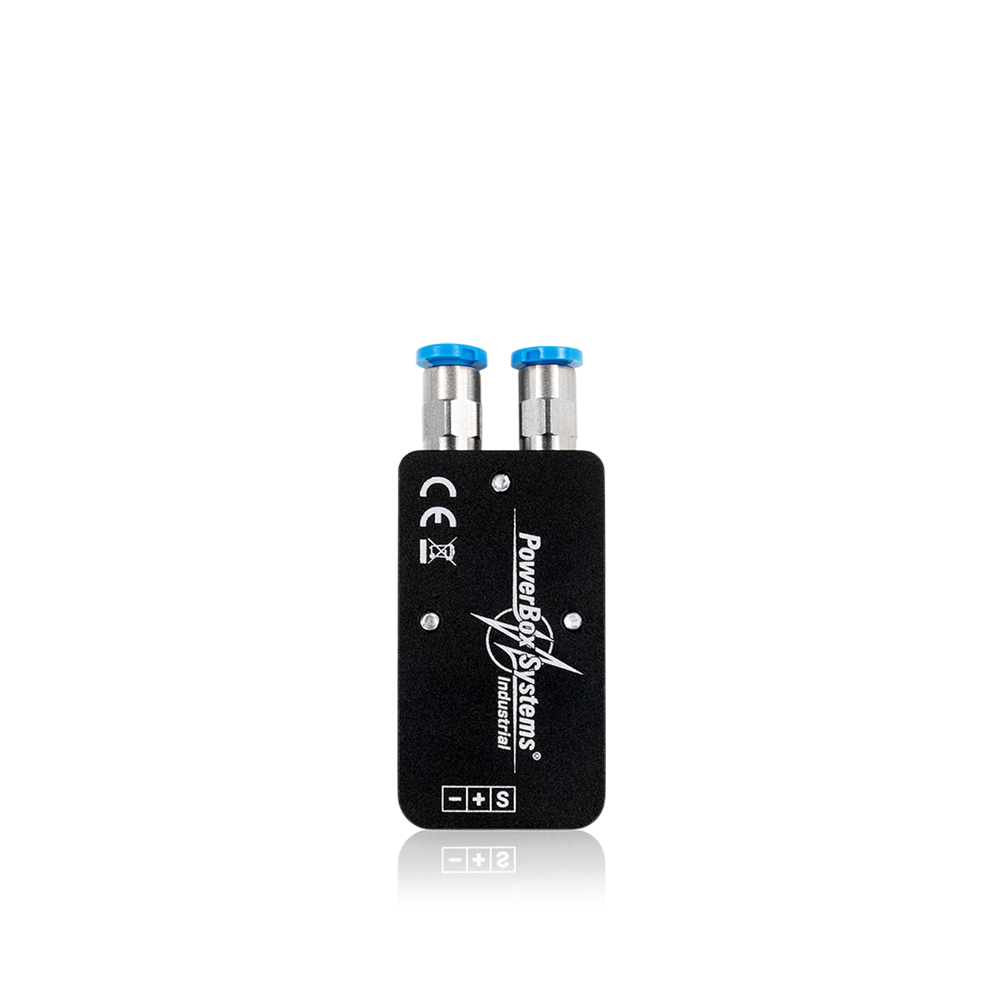

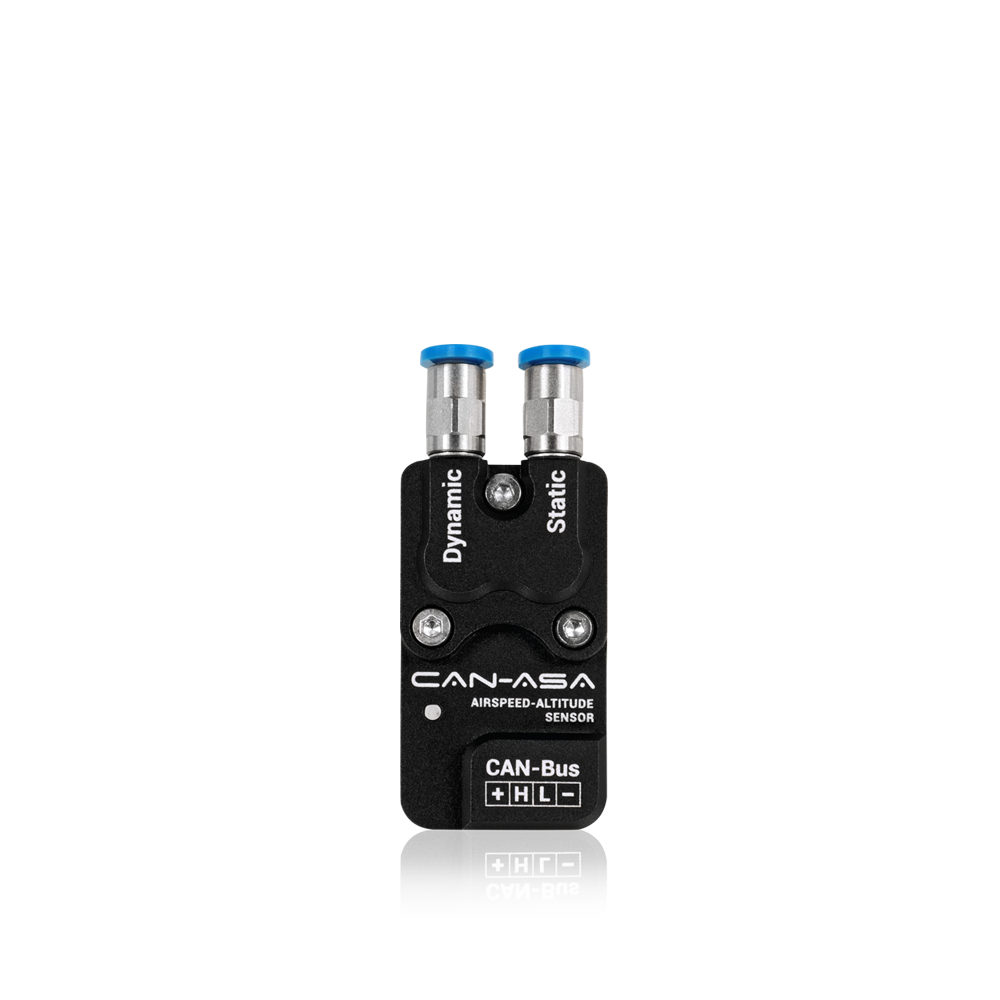

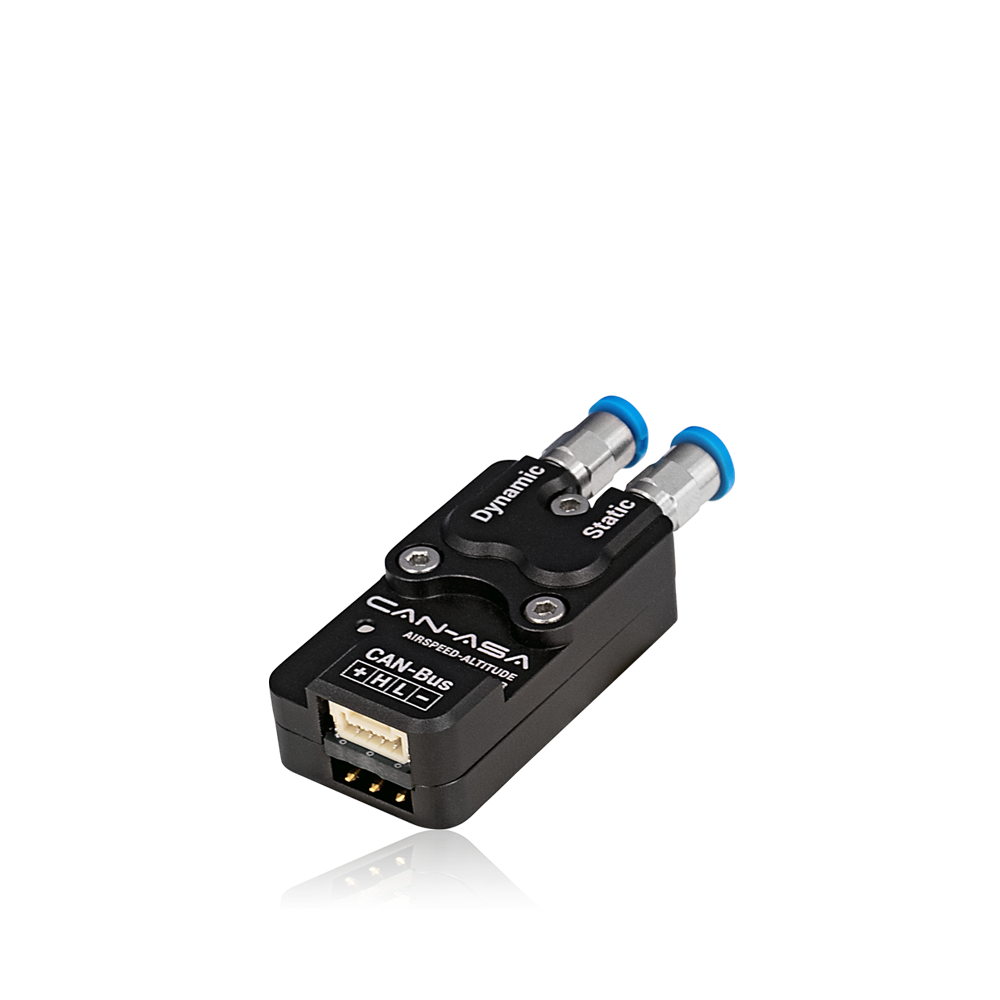

PowerBox CAN-ASA
Available soon!
Description
Data
Features
Set contents
Downloads
Certificates
Description

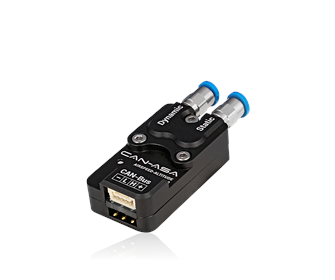

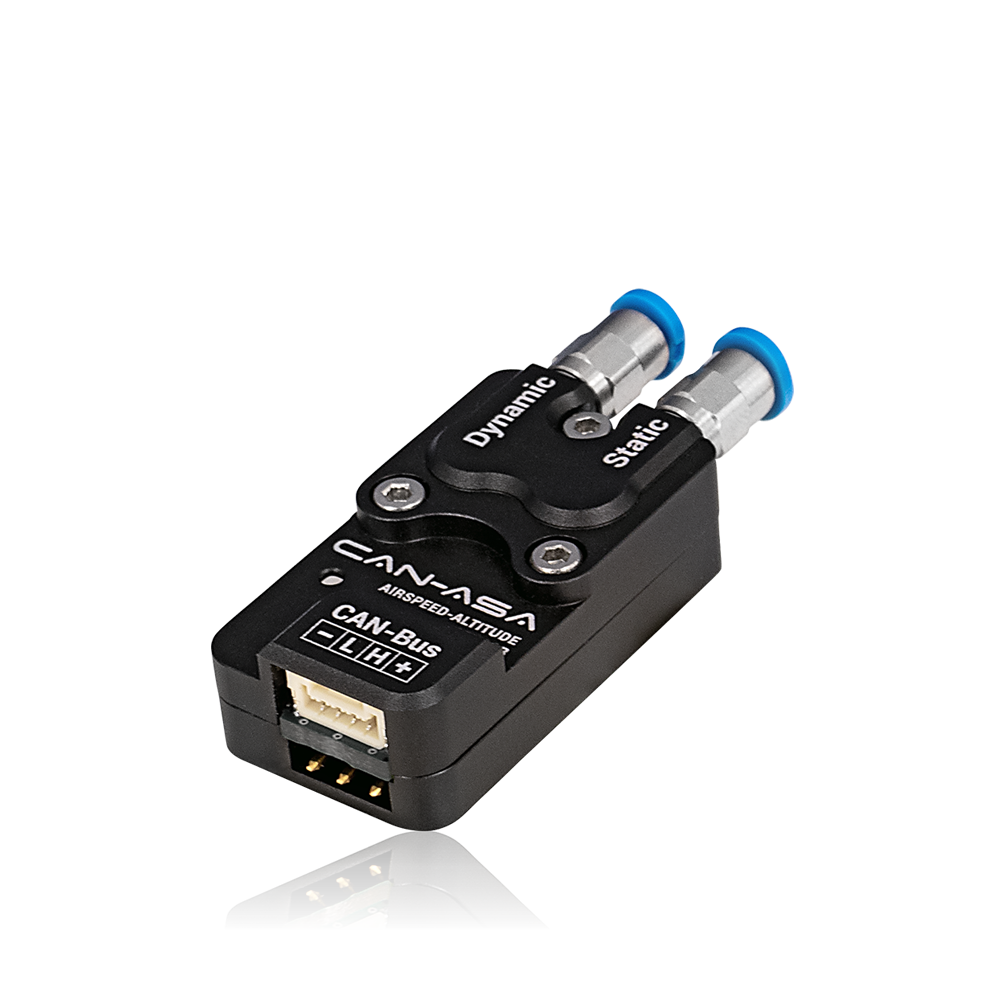

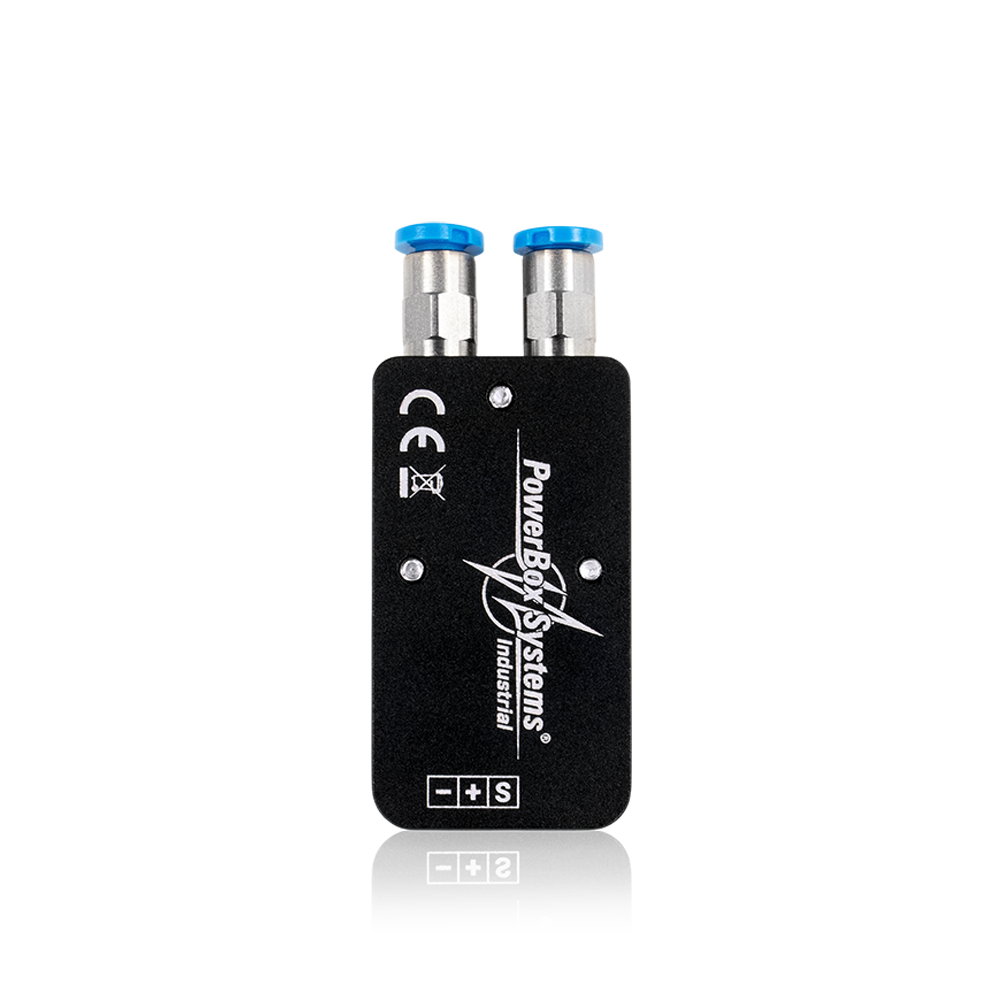

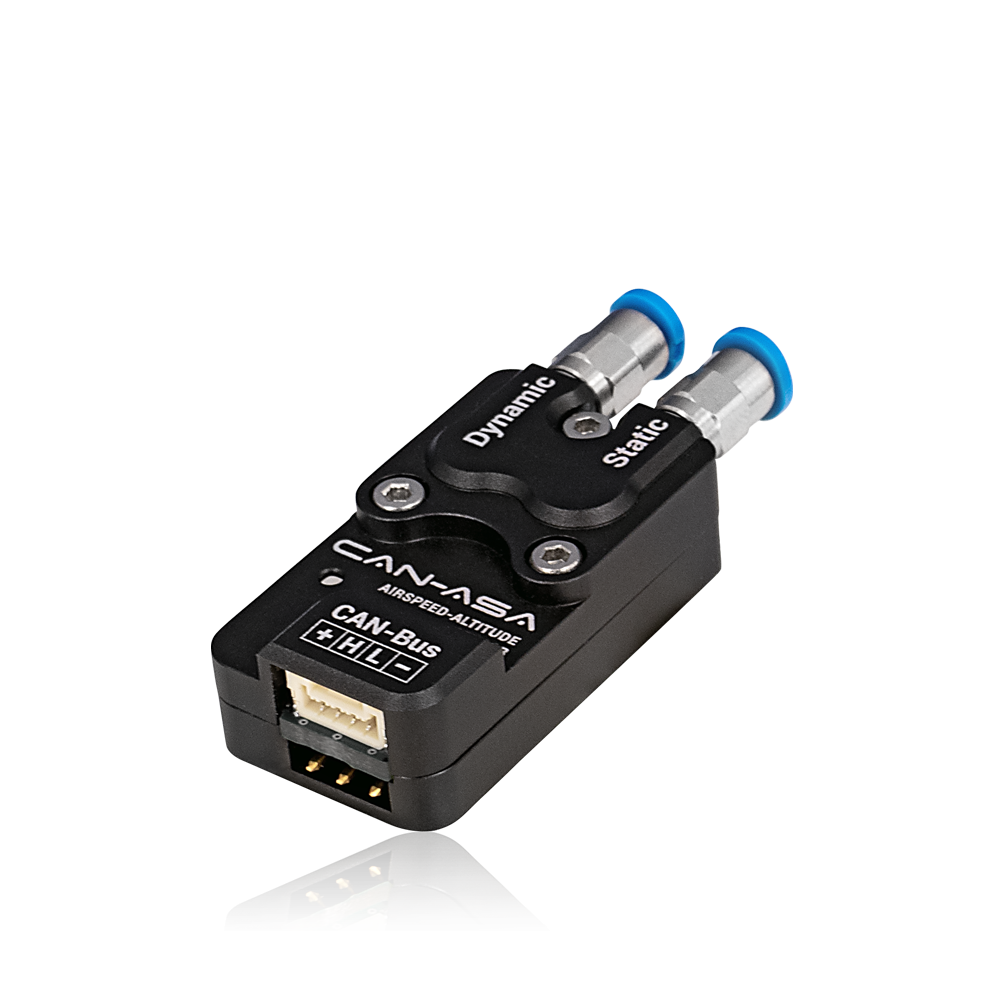

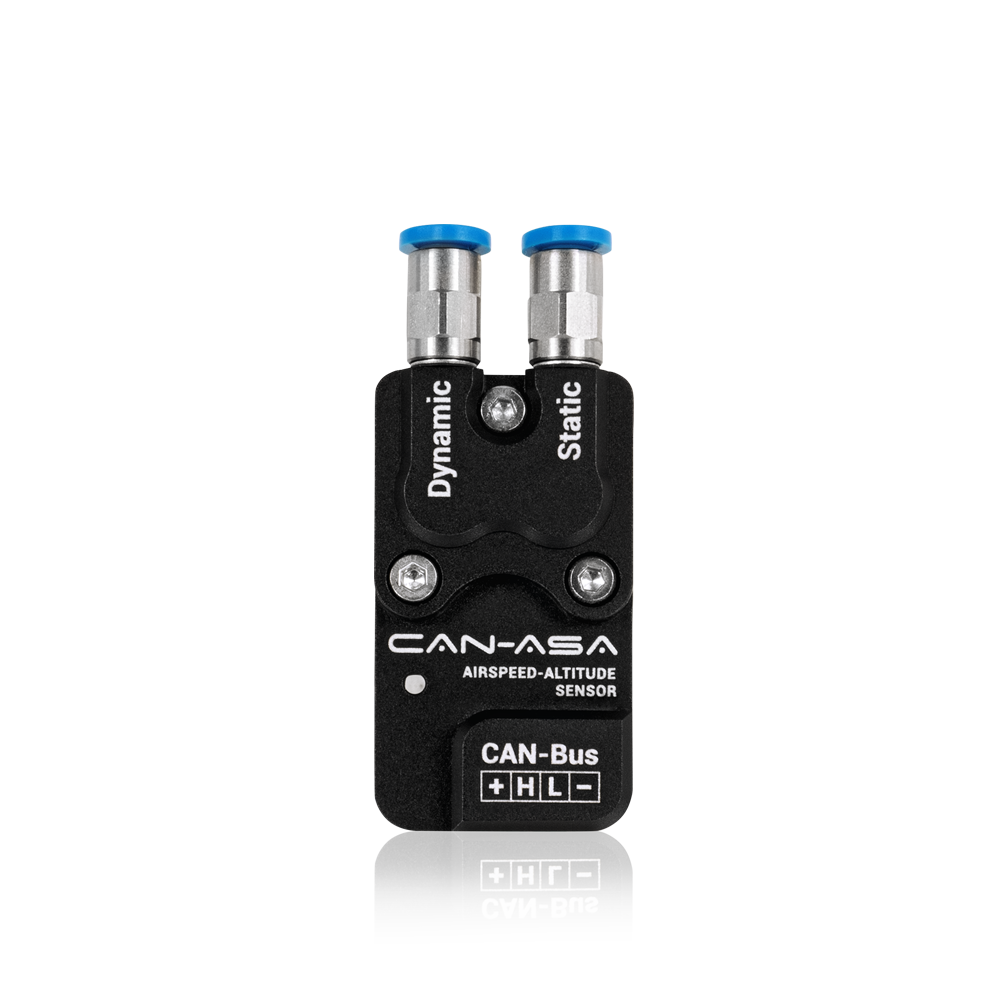

The CAN-ASA is an airspeed and altitude sensor that works with two high-precision digital barometric sensors. The static pressure is used to calculate altitude and rate of climb. The speed is calculated from the difference to the dynamic pressure. This results in a large measurable speed range up to over 850 km/h and an altitude measurement with 100 mm relative resolution.
The CAN-BUS interface enables simple integration into all common flight computers. In addition, the most common RC telemetry protocols such as P²-BUS or EX-BUS can be operated in parallel with the CAN-BUS interface.

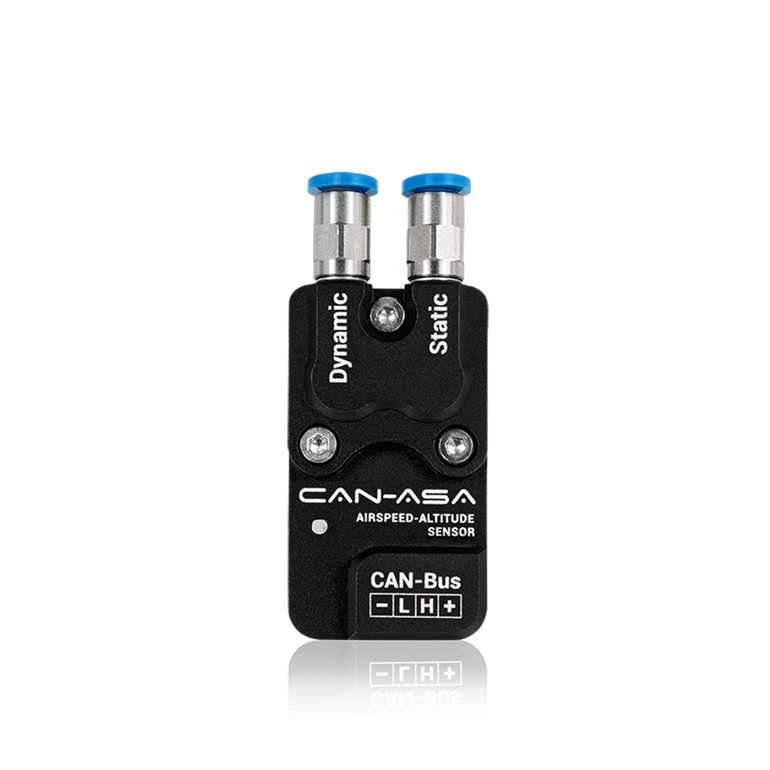

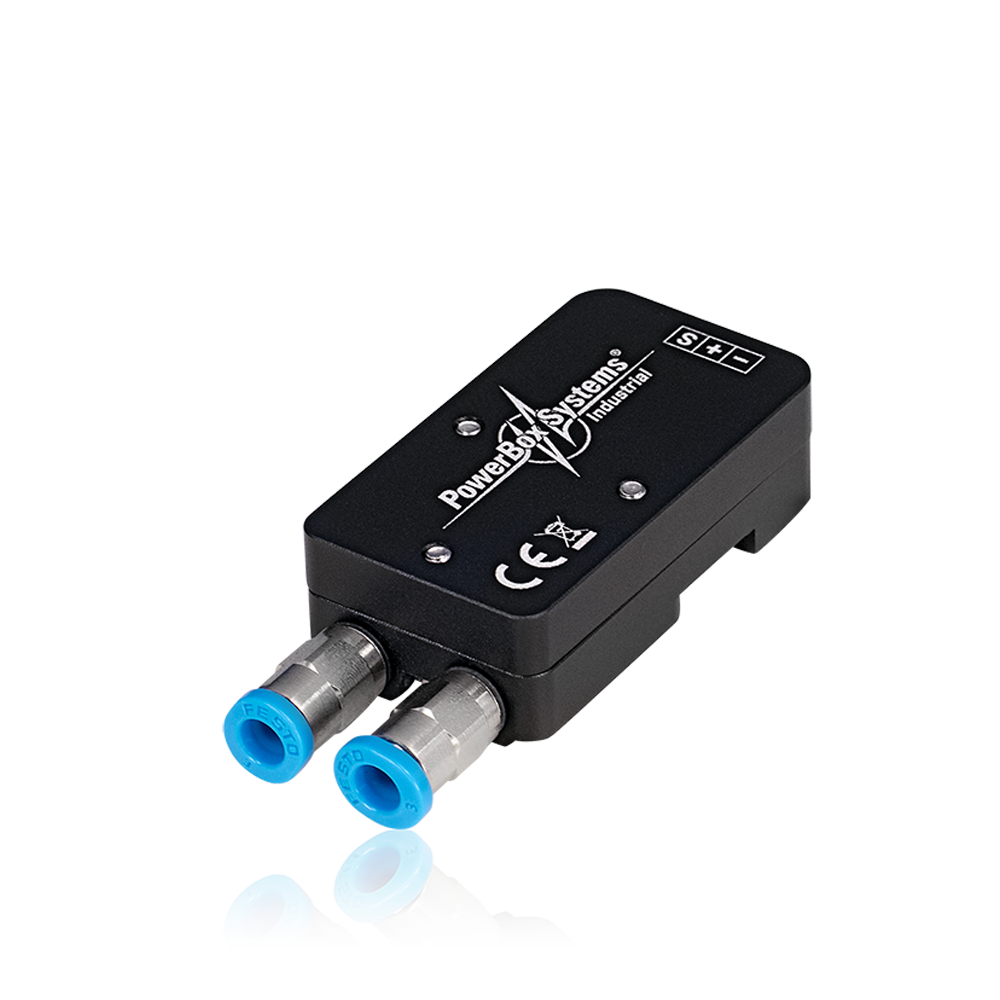

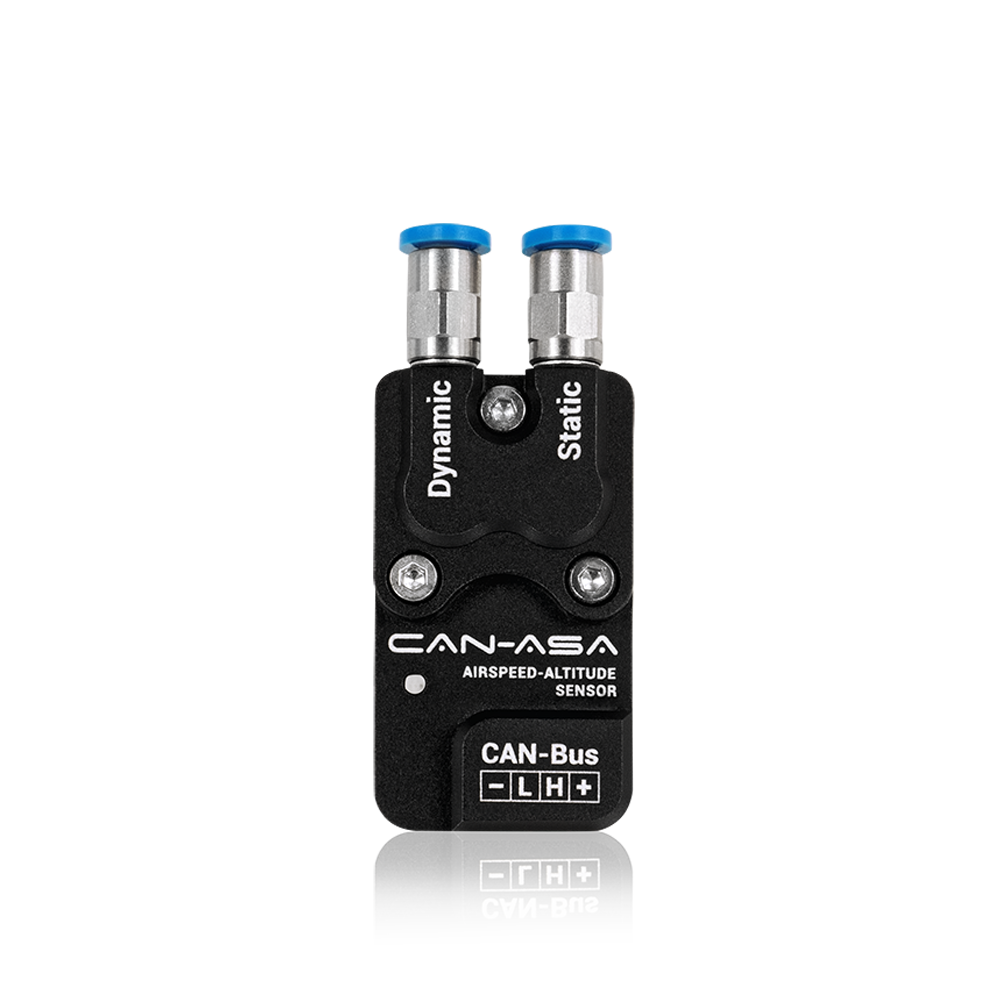

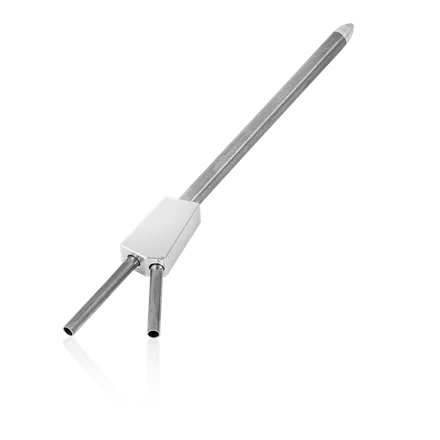

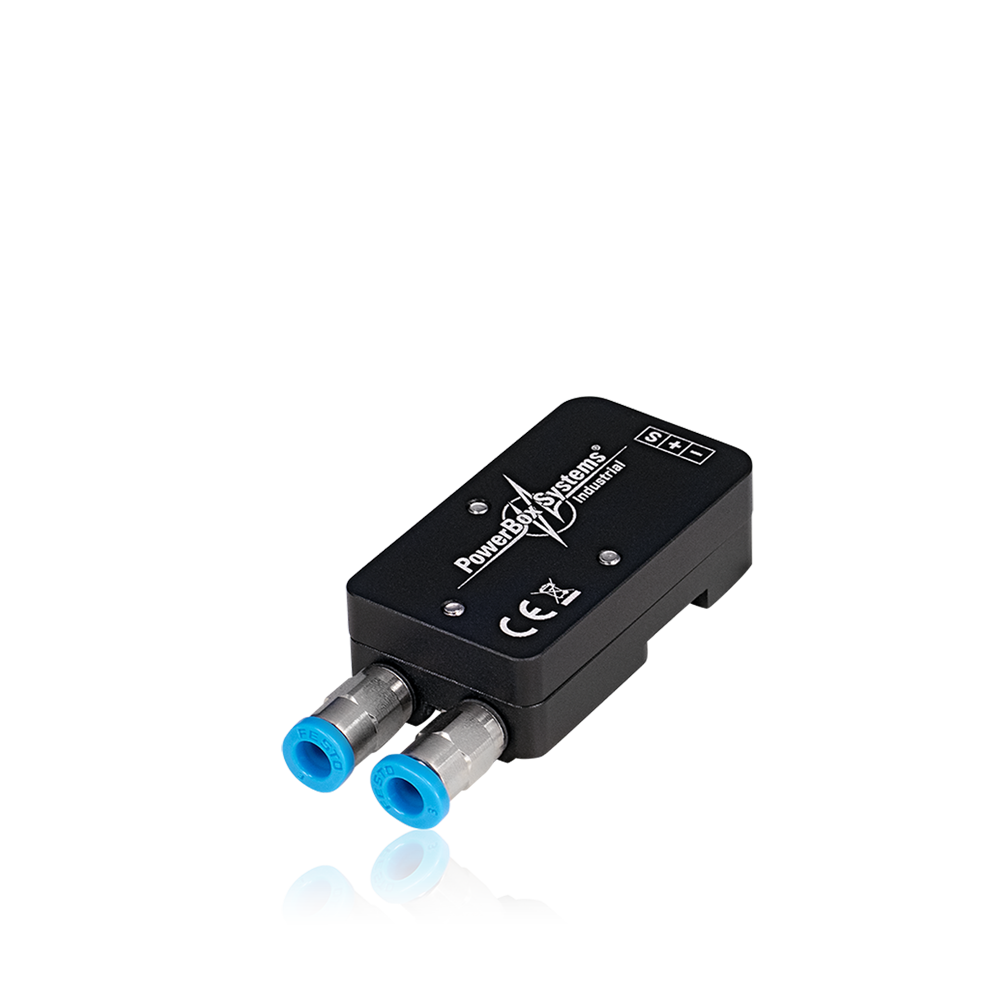

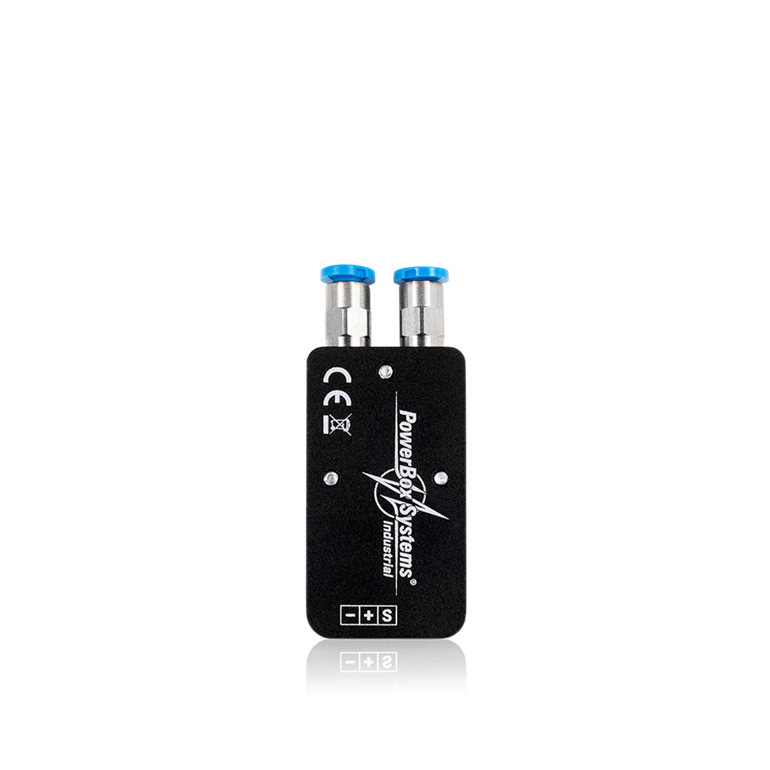

Two 3mm Festo connectors are installed for the connection to the pitot tube. The CAN-ASA can be updated.
Data
Operating voltage | 4.0V - 9.0V |
Current drain Power-on state | max. 32mA |
Supported bus systems | Drone-CAN, PowerBox P²-BUS, Jeti-EX, Futaba S.BUS2 |
Speed | max. 850km/h |
Resolution Speed | 1km/h (ab 10km/h) |
Resolution height | 0.1m |
Dimensions | 45 x 19 x 9 mm |
Weight | 14 g |
Temperature range | -40°C bis +85°C |
Features
+ precise measurement of speed, altitude, climb rate and distance
+ two high-precision separate pressure sensors with the latest MEMS sensor technology
+ speed measurement up to approx. 850km/h
+ altitude measurement accurate to 10cm
+ high-precision climb rate measurement 0. 1m/s
+ fast digital filters for delay-free data acquisition without noise
+ CAN-BUS interface for easy integration
+ aluminum housing with two separate pressure chambers
+ Festo connectors suitable for 3mm Festo tubes
+ automatic detection of the optionally connected RC system
+ supported RC systems: PowerBox P²BUS, Jeti-EX, Futaba S.BUS2
+ works with all types of pitot tubes
+ can be updated with the Mobile Terminal
Set contents
+ CAN-ASA
+ Black tube
+ Adhesive pad
+ Quick start guide English
