Description

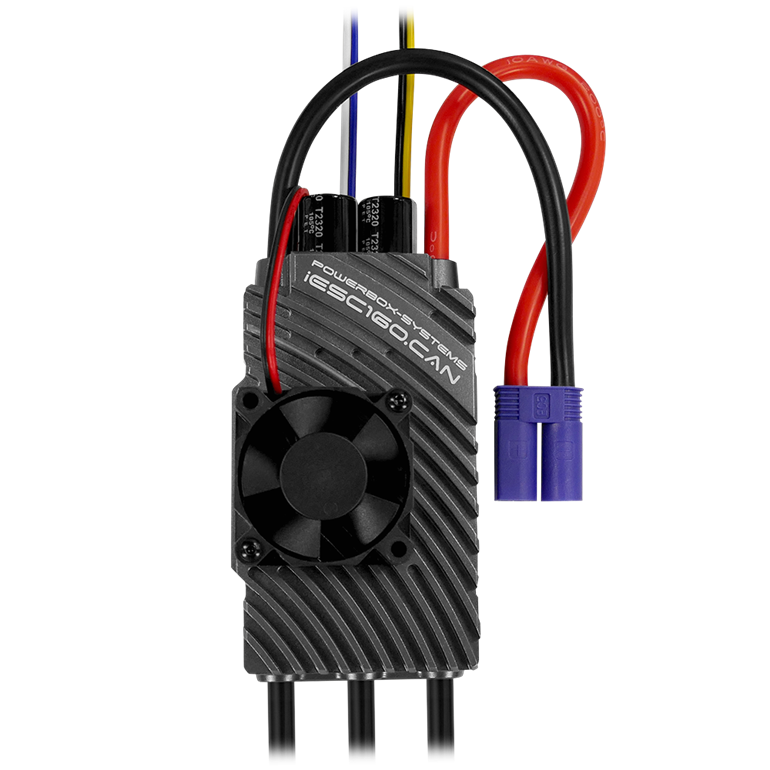

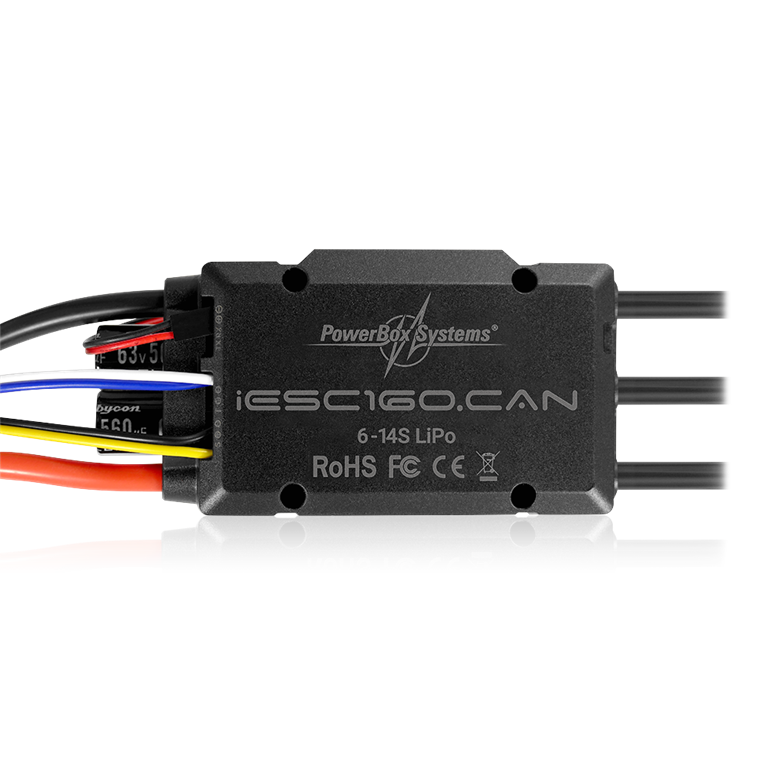

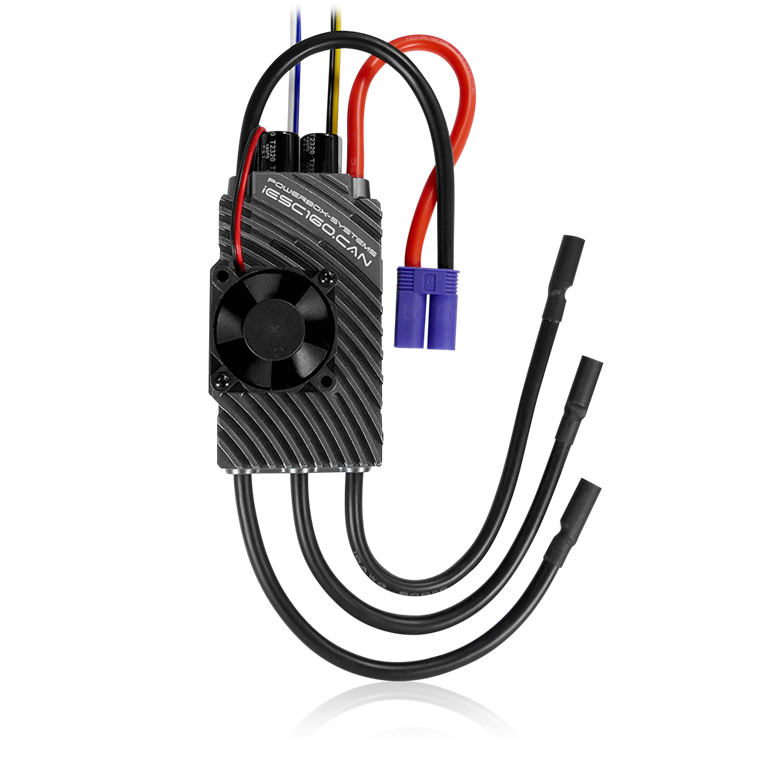

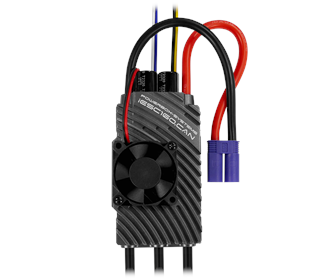

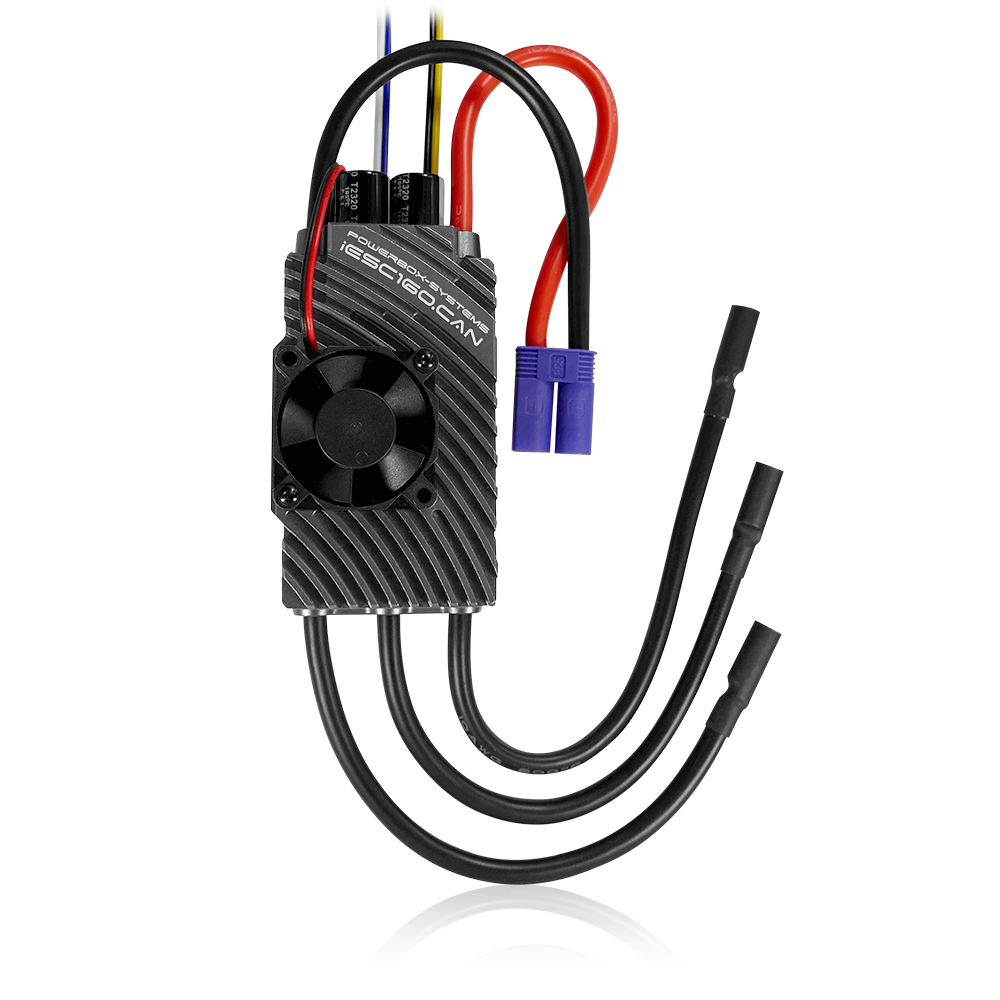

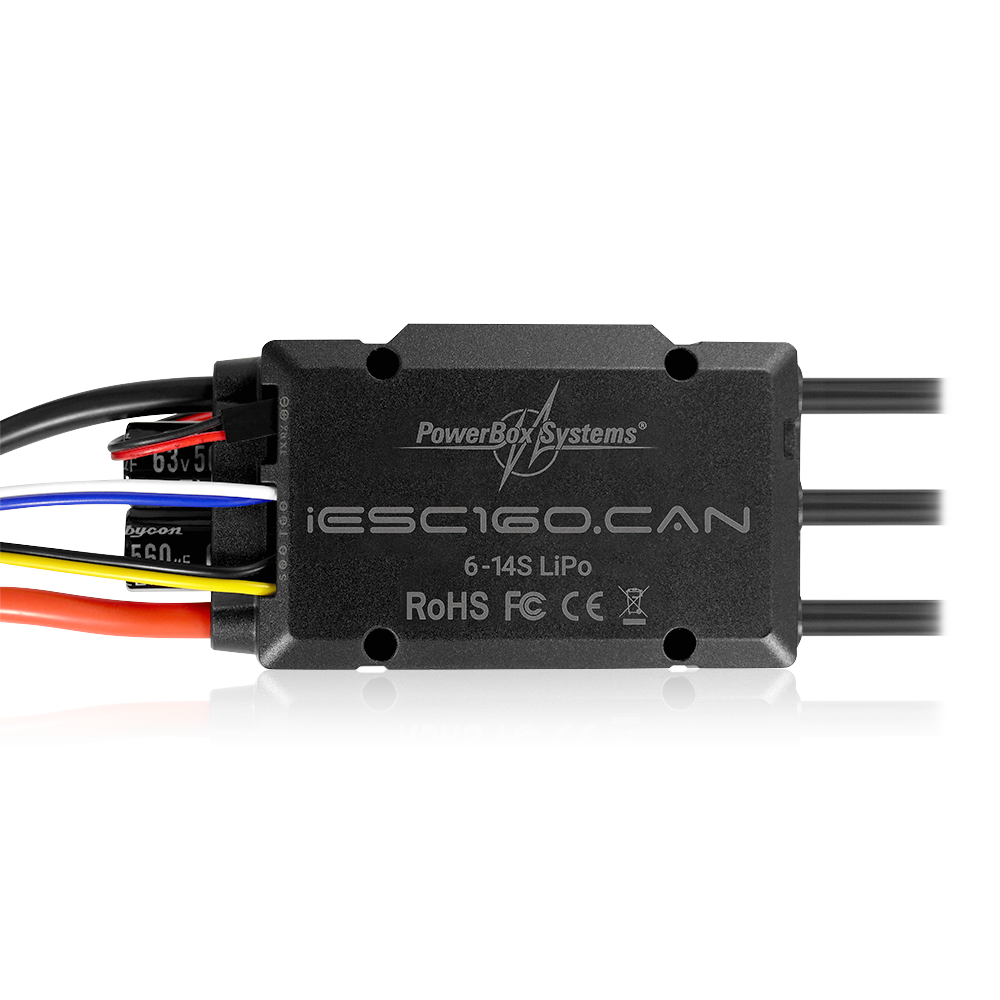

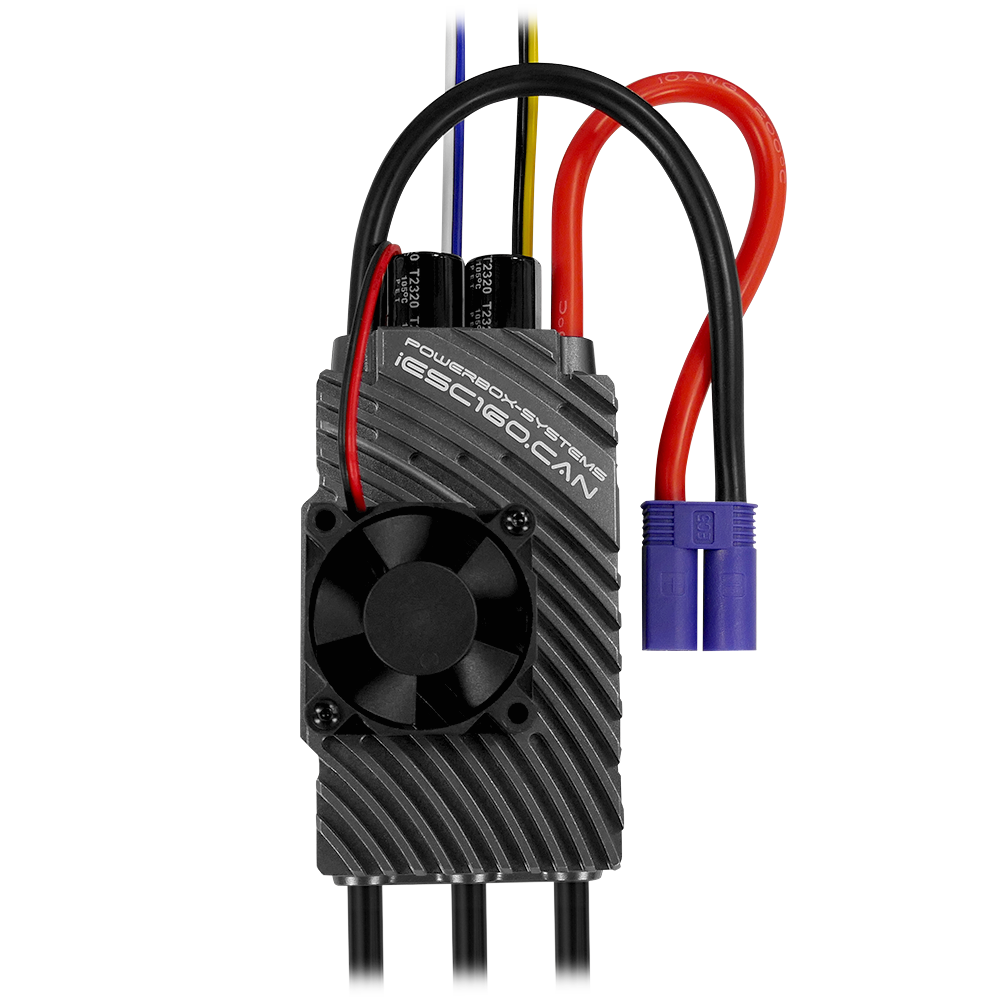

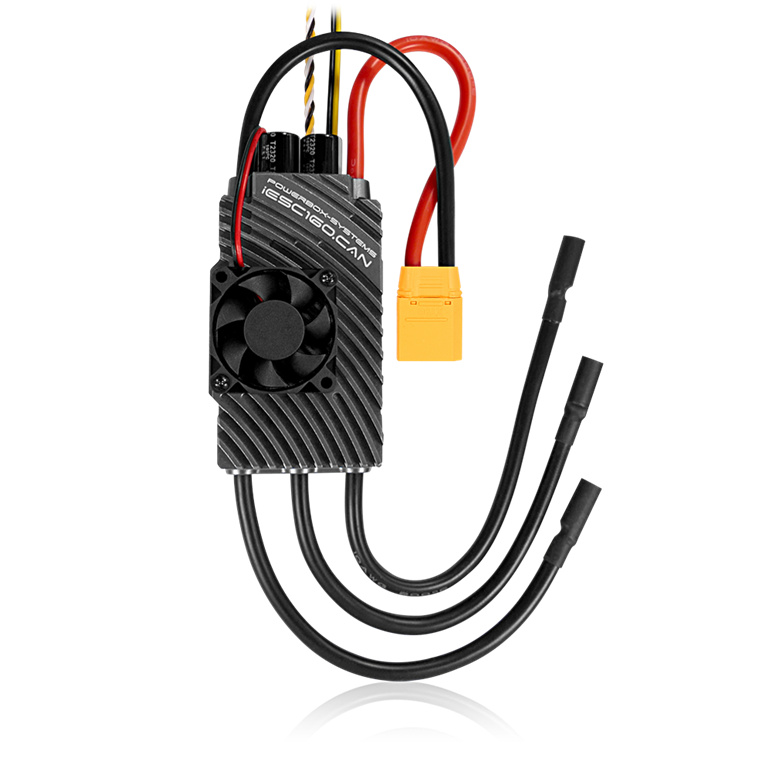

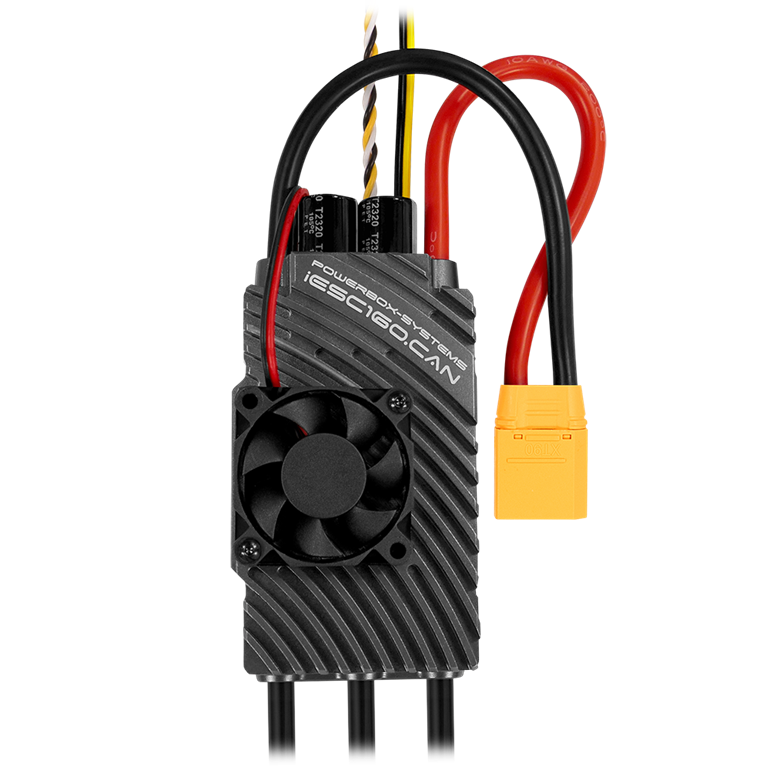

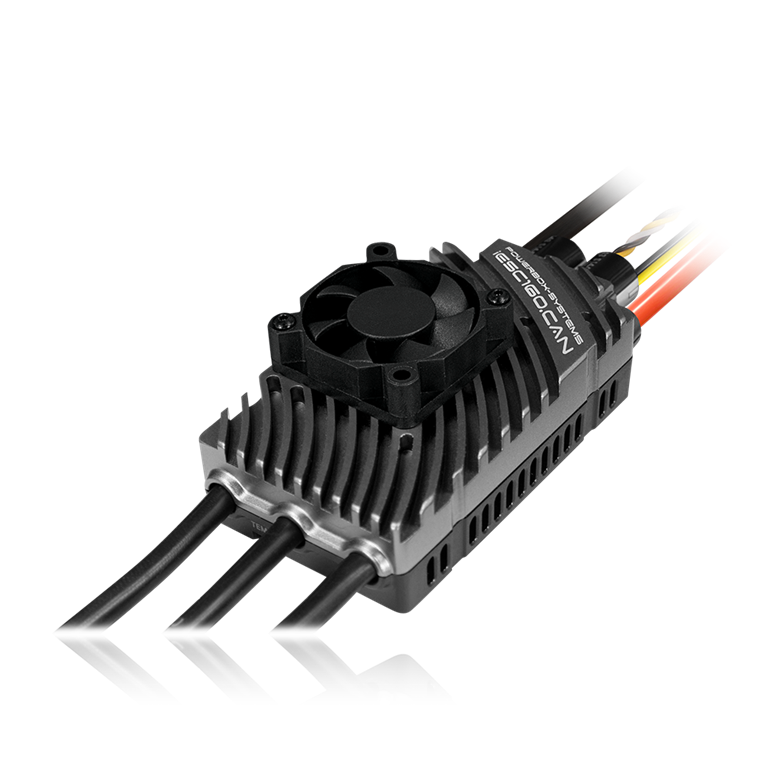

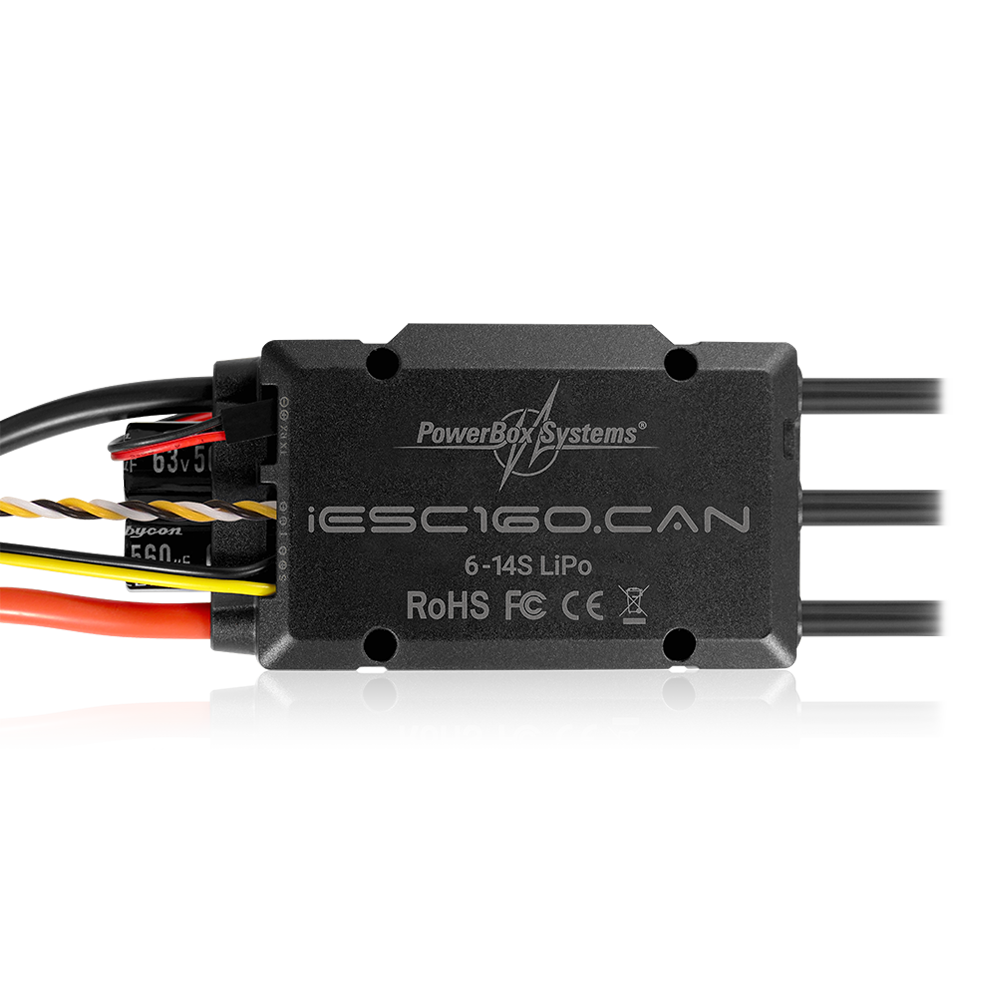

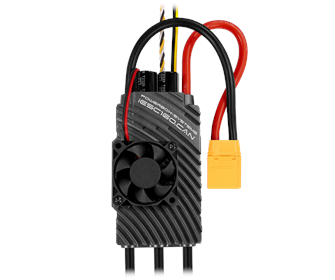

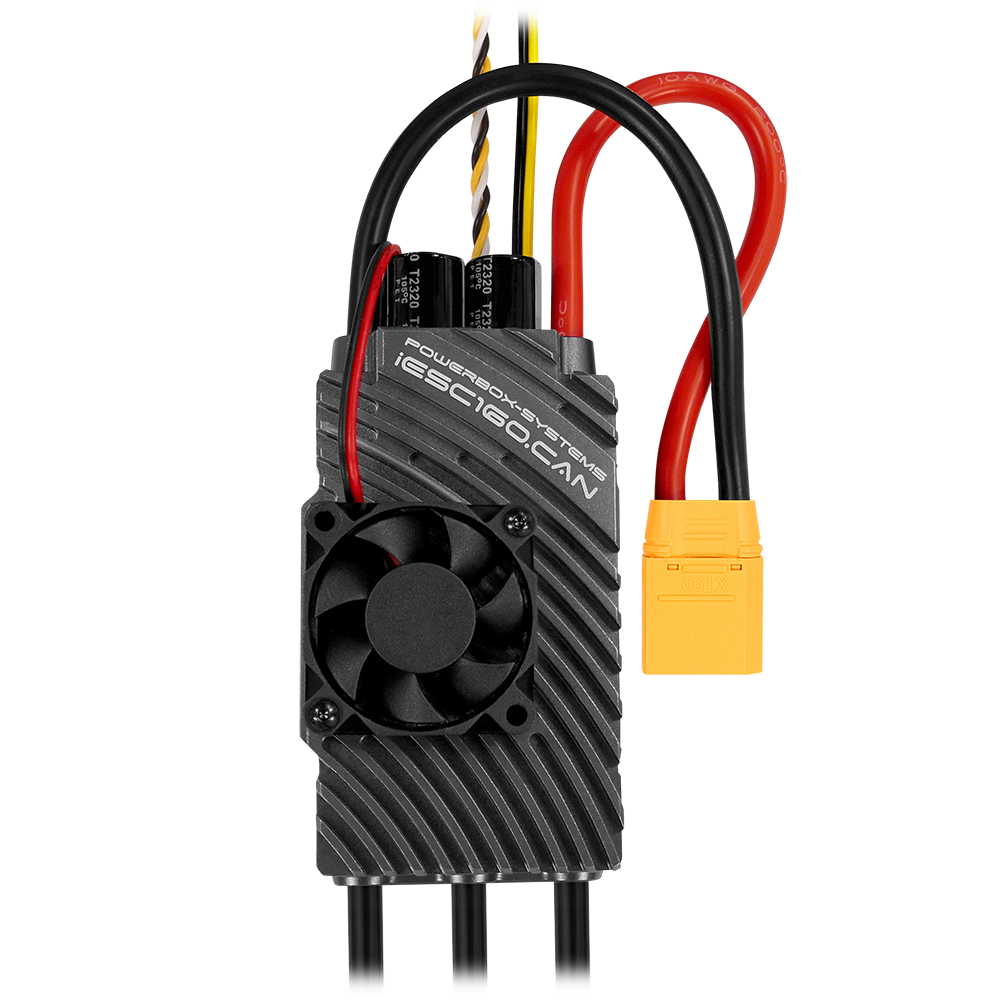

The iESC 160.CAN is based on the latest generation of controllers for brushless motors, featuring a 32-bit processor and extended functions such as telemetry and direct adjustment from the transmitter. The powerful microprocessor ensures clean motor running for brushless motors with up to 40 poles.
Braking force, motor timing, direction of rotation, gear ratio, freewheeling, heli mode and much more can be set via the CAN bus. A simple iESC programming box (#5115) is also available for system-independent programming.
The iESC 160.CAN provides Ardupilot compatible telemetry data such as battery voltage, current, used capacity, RPM and the temperature of the controller. Other protocols are available on request.
The iESC 160.CAN works with up to 14S batteries and is designed as an opto version.
Data
| Operating voltage | 6S - 14S |
| Maximum load current | 160A / 180A Continous / Peak |
| Supported RC systems | PowerBox, Jeti, Futaba, others without telemetry |
| Supported telemetry systems | P²-BUS, EX-BUS, S.BUS2 |
| Dimensions | 97 x 51 x 34 mm |
| Weight | 199 g |
| Temperature range | -20°C to +85°C |
Features
+ High performance brushless controller with 32-bit technology
+ Latest MosFet generation for less power loss and highest reliability
+ Telemetry plug'n'play for Ardupilot
+ Fixed-wing and heli mode
+ Adjustable direction of rotation, timing, battery type, freewheeling, starting current and other parameters
+ Adjustable control parameters in Governor mode
+ Parameters can be set directly via the CAN bus or the iESC programming box
+ Integrated anti-spark circuit
+ HV opto version
+ Self-test when switching on checks motor, throttle position and voltage

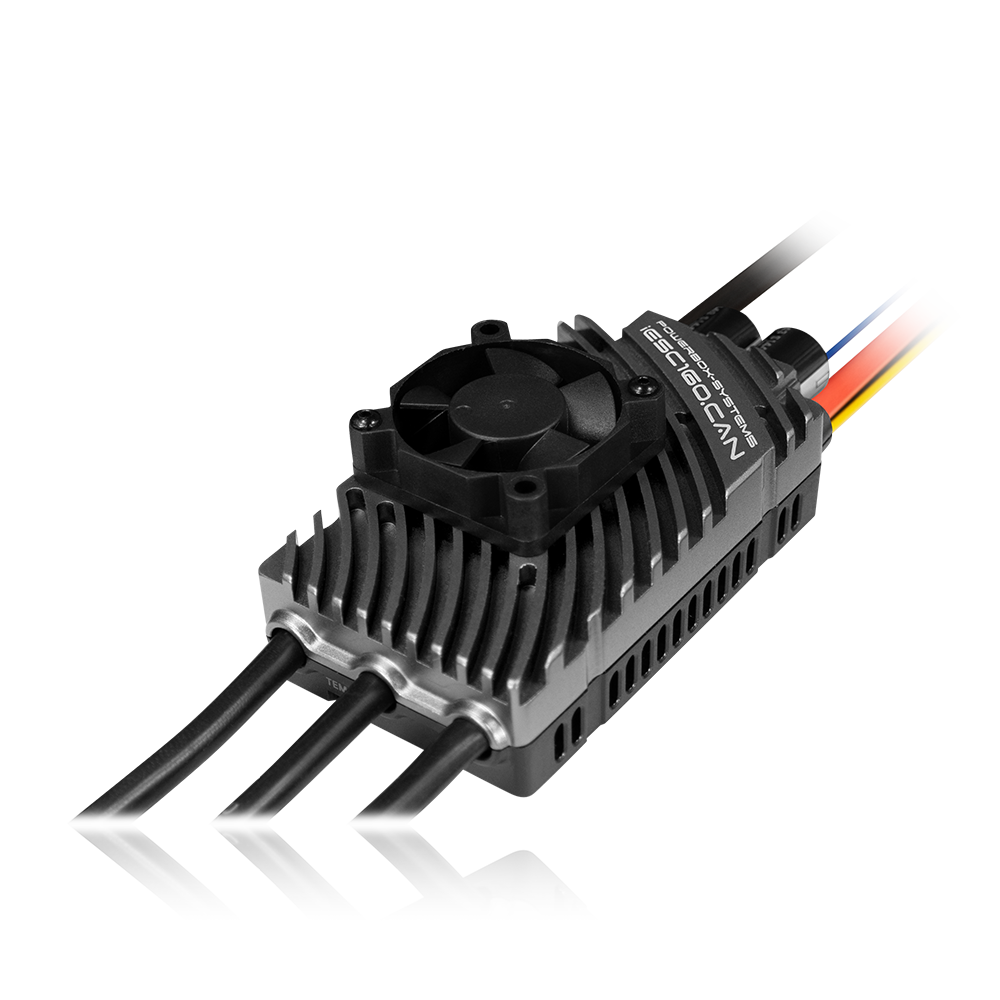

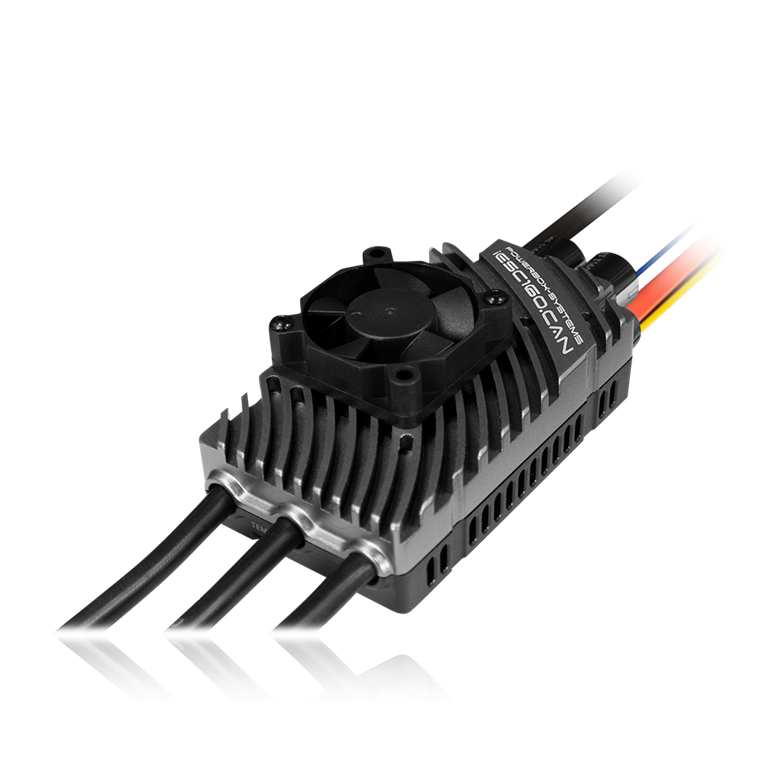

+ Optimum cooling thanks to sophisticated housing design
Set contents
+ 1x iESC 160.CAN
+ Instruction manual in German and English
