PowerBox Micro Gimbal
High-precision, compact joystick control system
Description
Data
Description

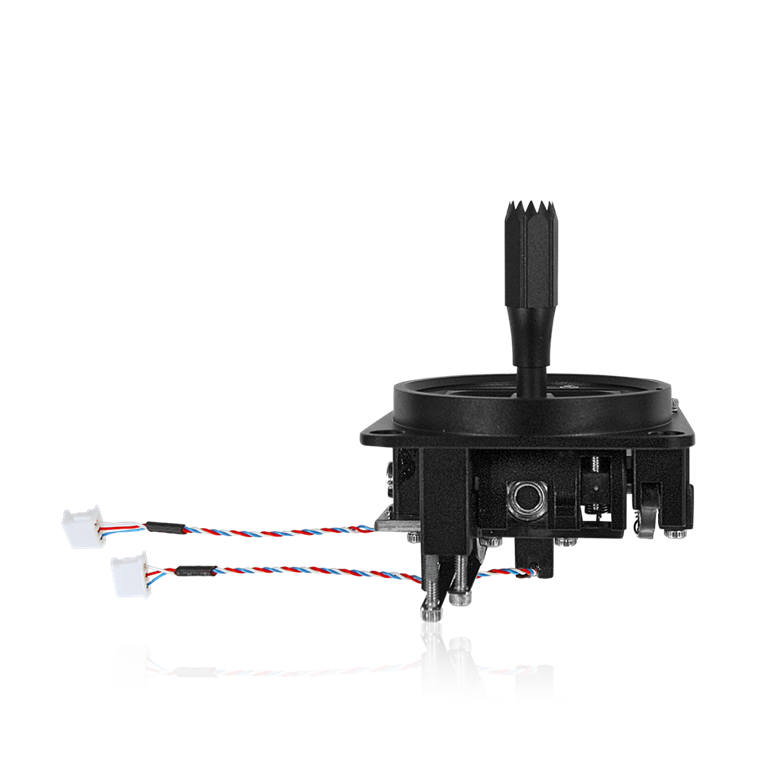

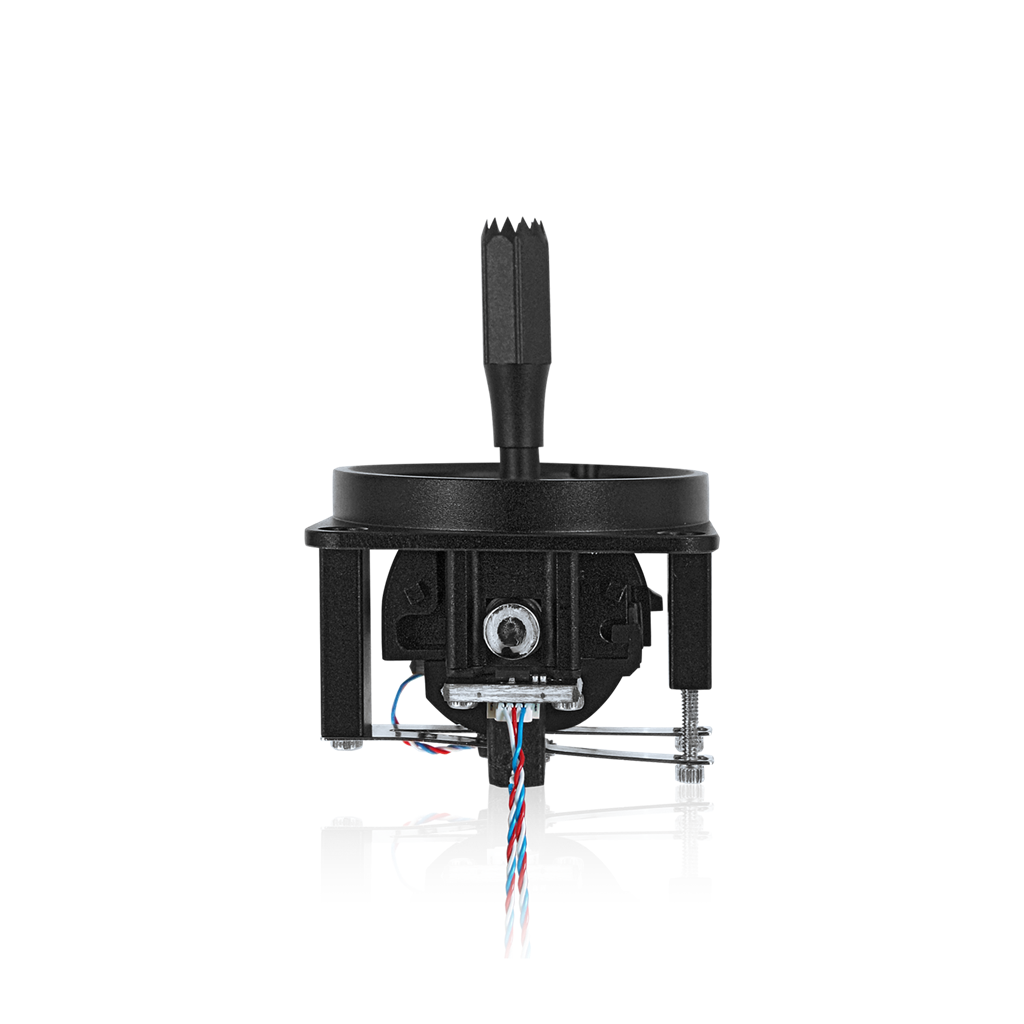

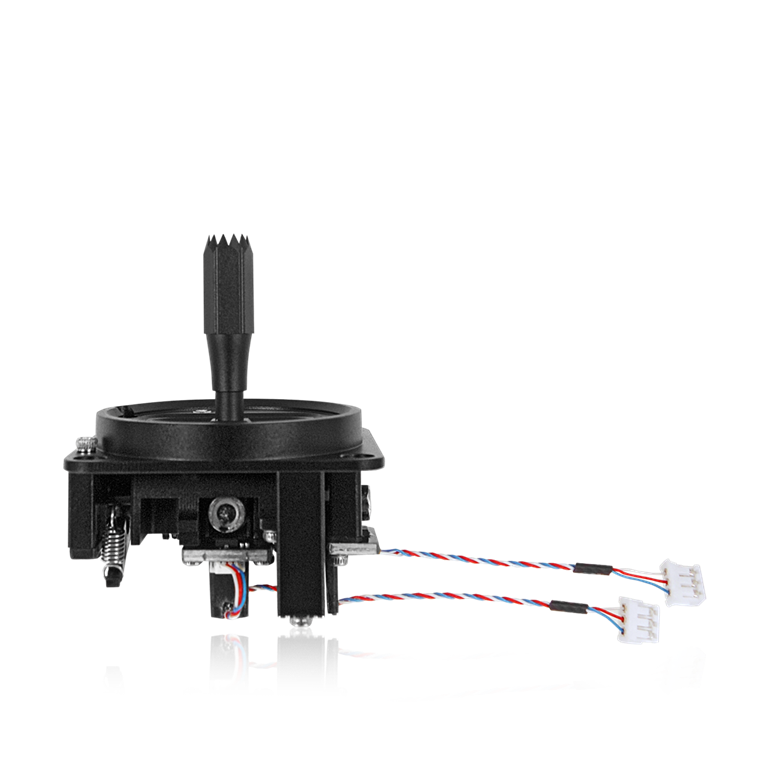

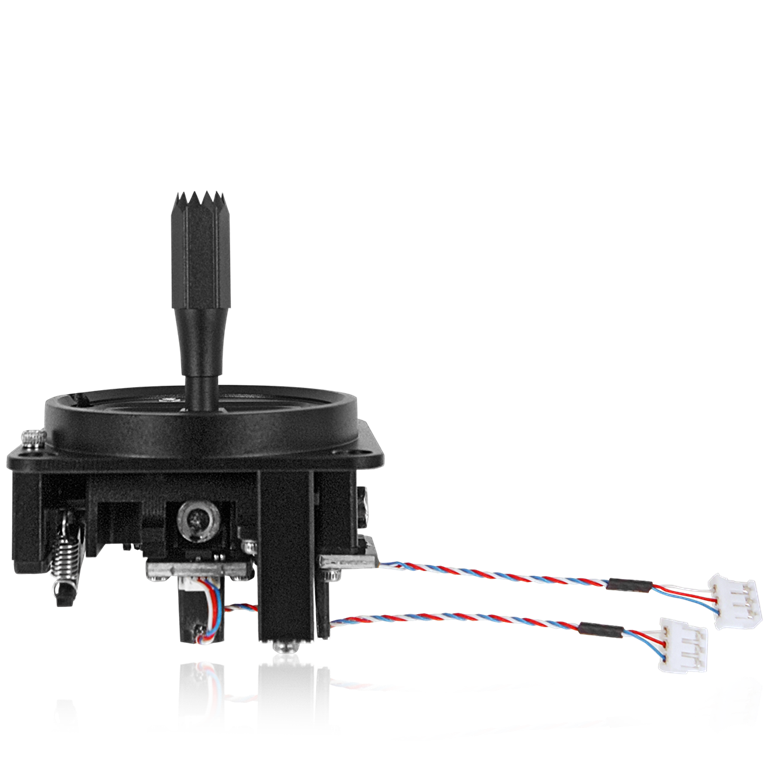

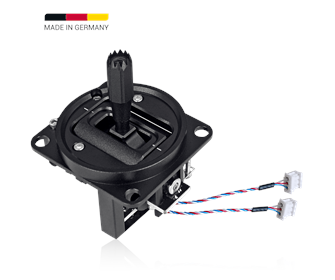

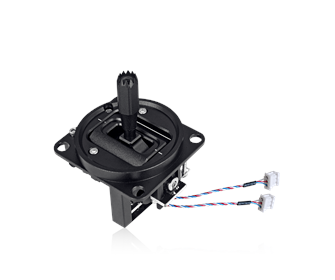

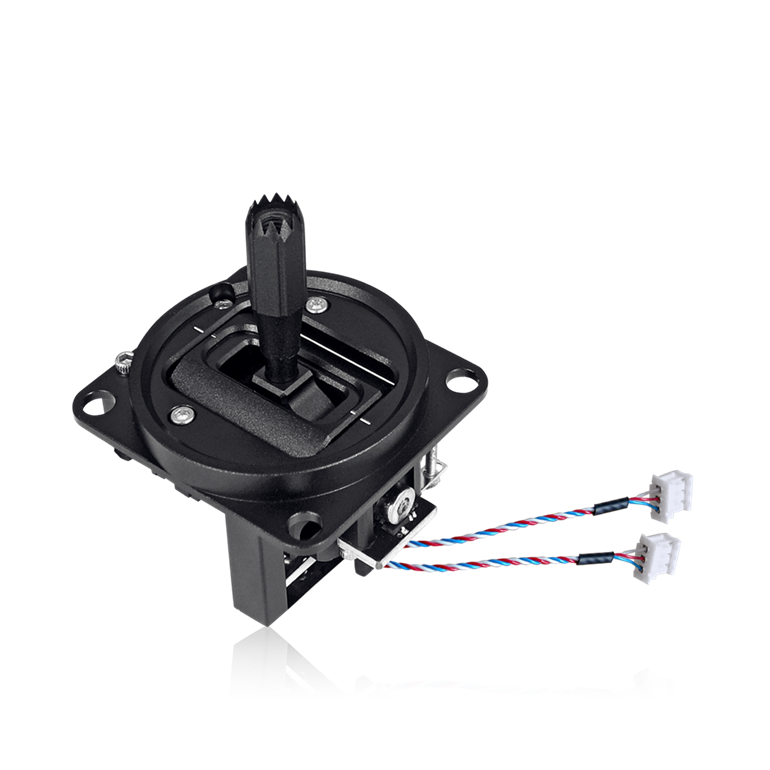

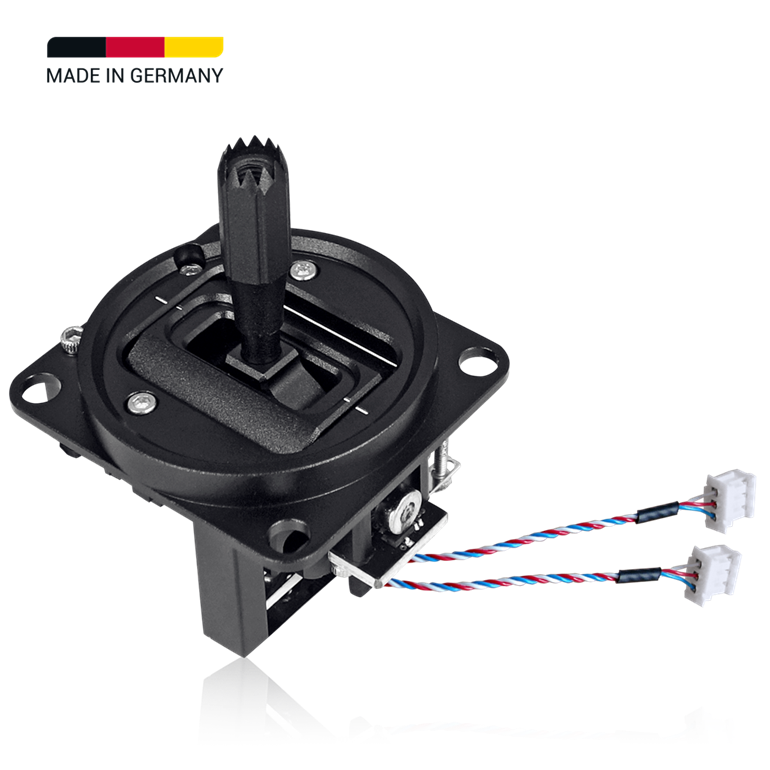

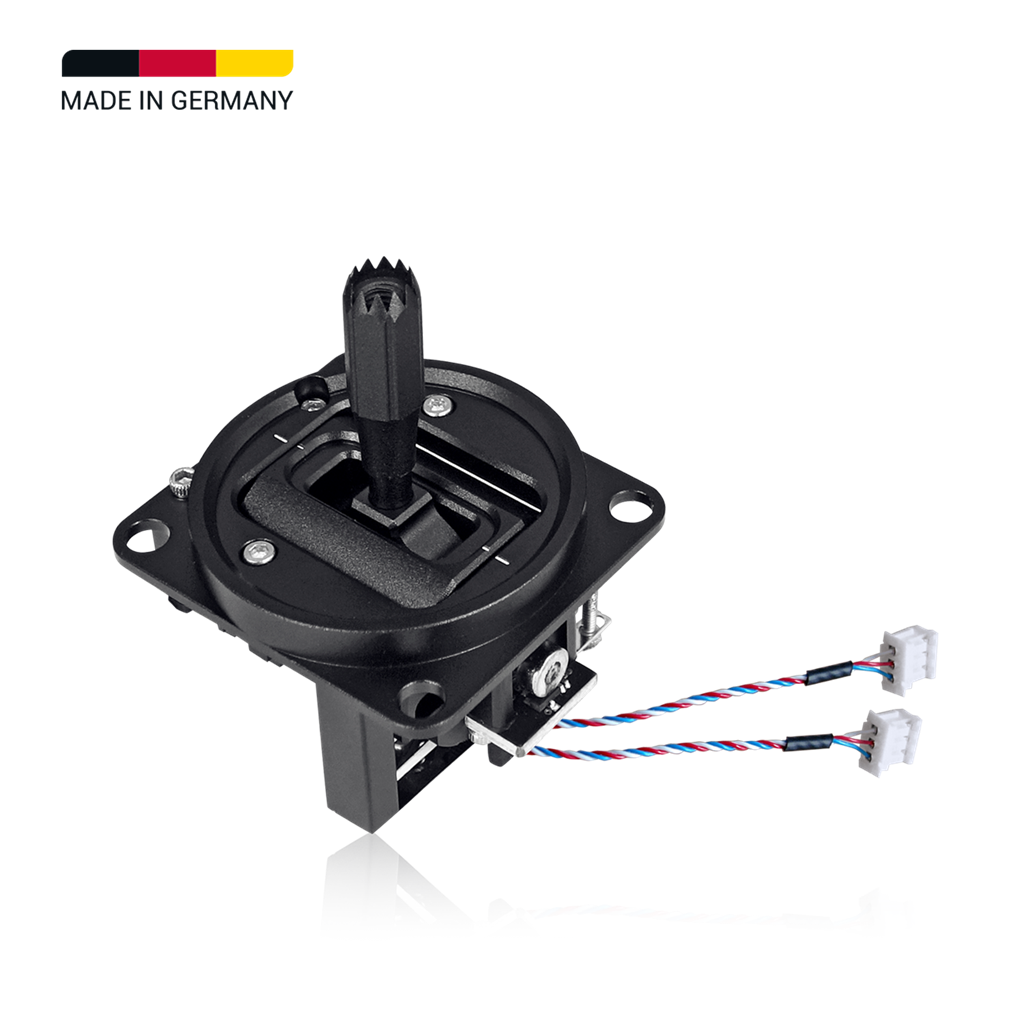

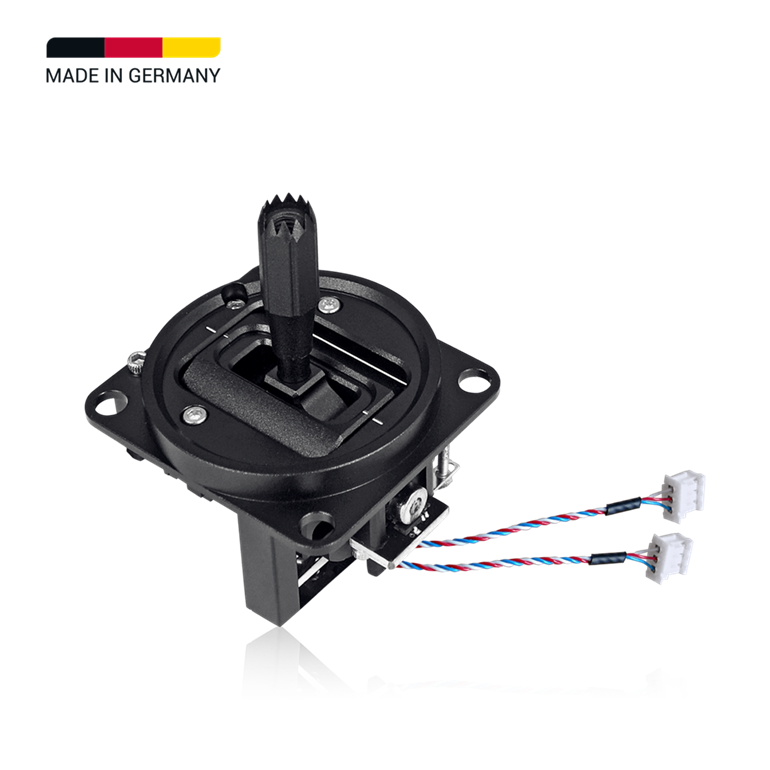

The PowerBox Micro Gimbal is a compact, robust and high-precision control stick for industrial applications and professional drone systems.

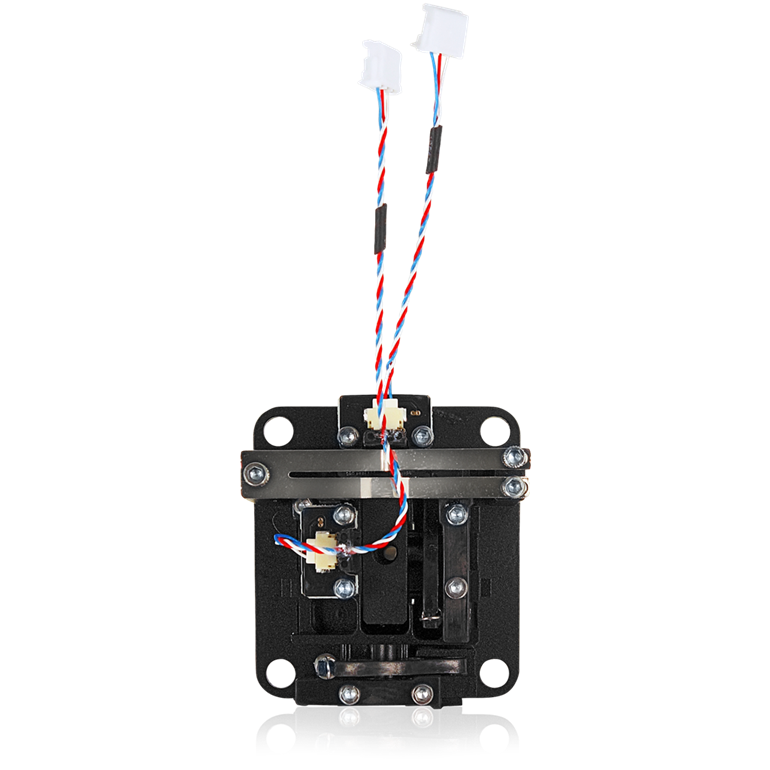

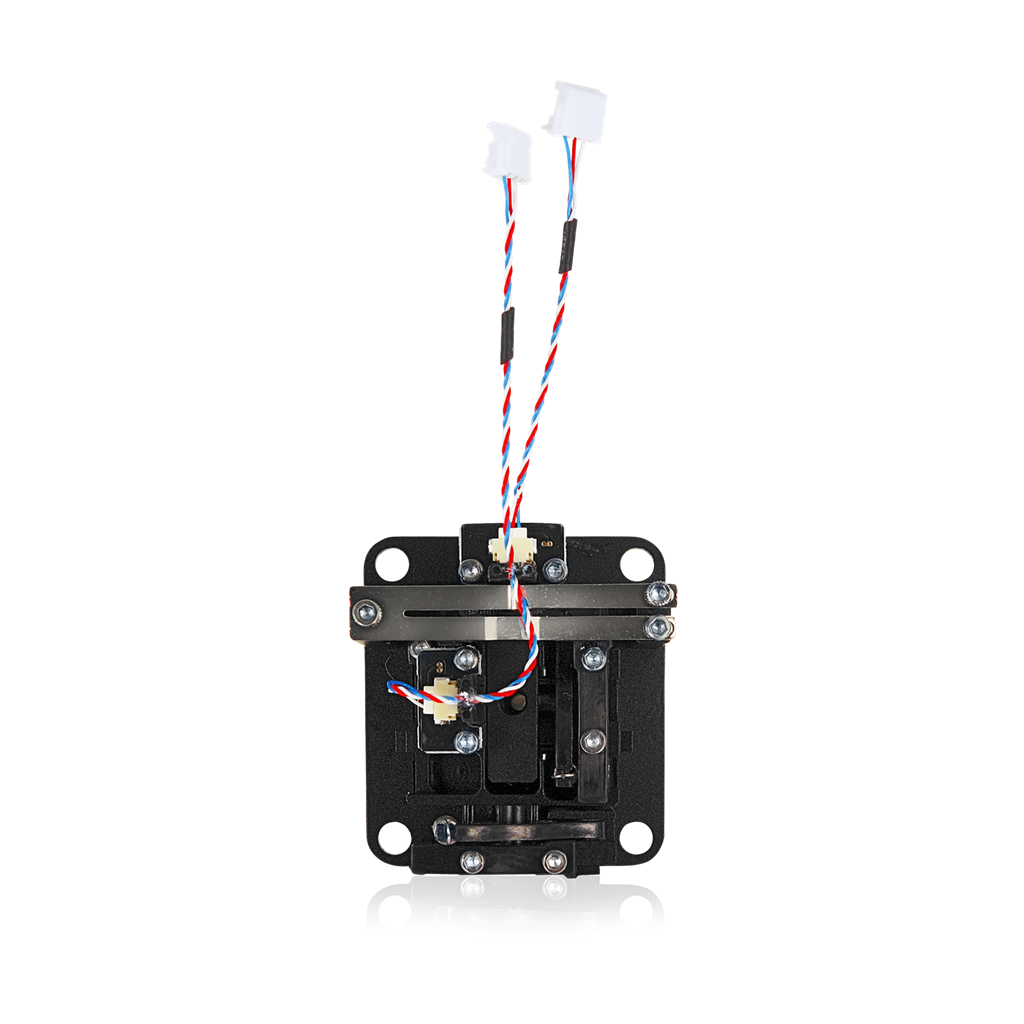

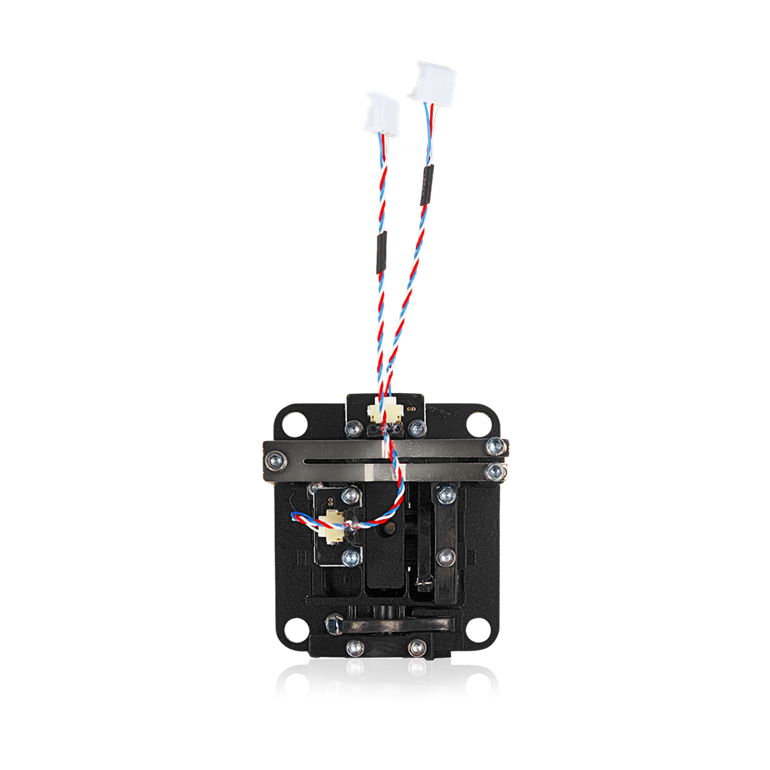

All key components are precision-machined from aluminium. Four ball bearings ensure smooth, play-free movement. Position detection is carried out wear-free and contactlessly via Hall sensors, which provide a digital PWM signal. This ensures lossless signal transmission; the achievable resolution is determined solely by the clock frequency of the microcontroller used. Suitable calibration routines in C are available on request.

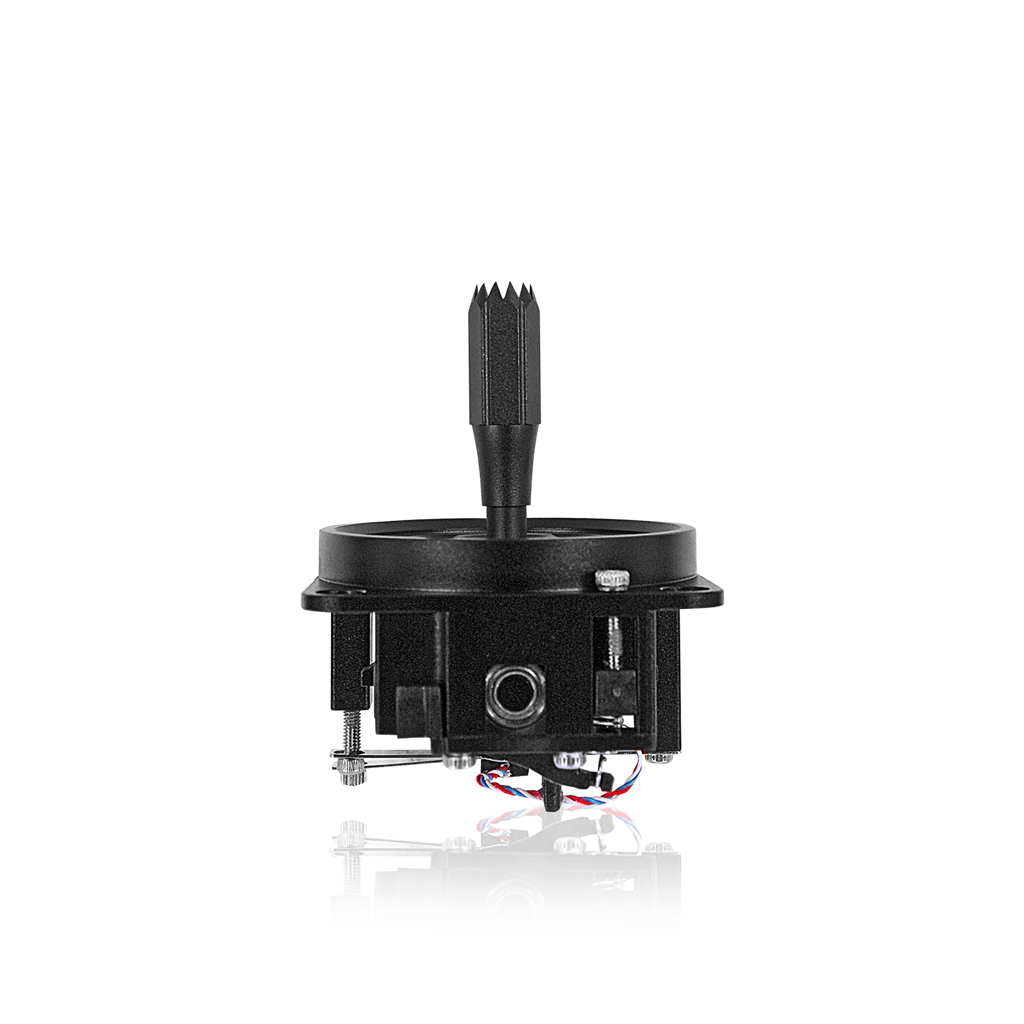

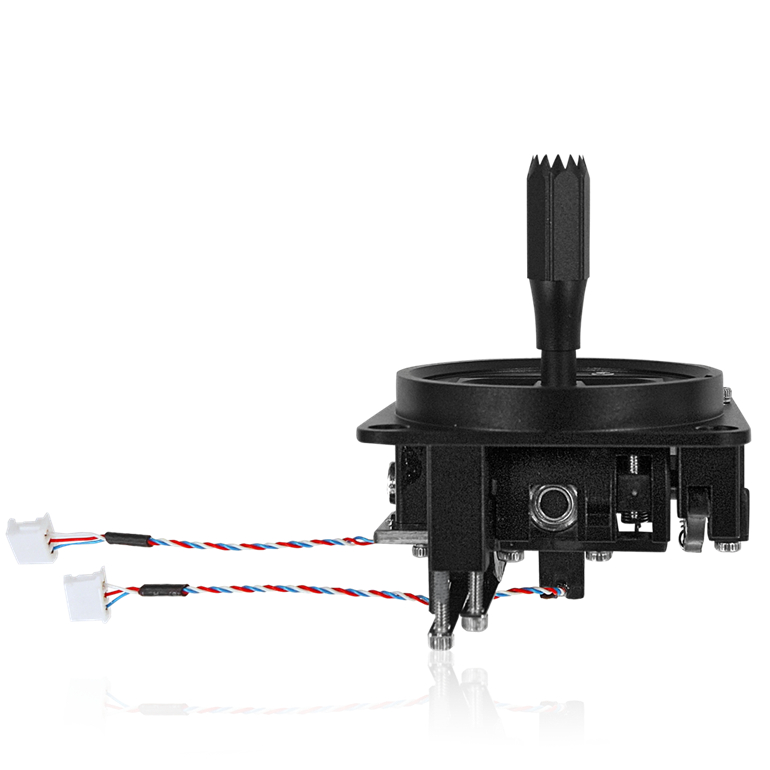

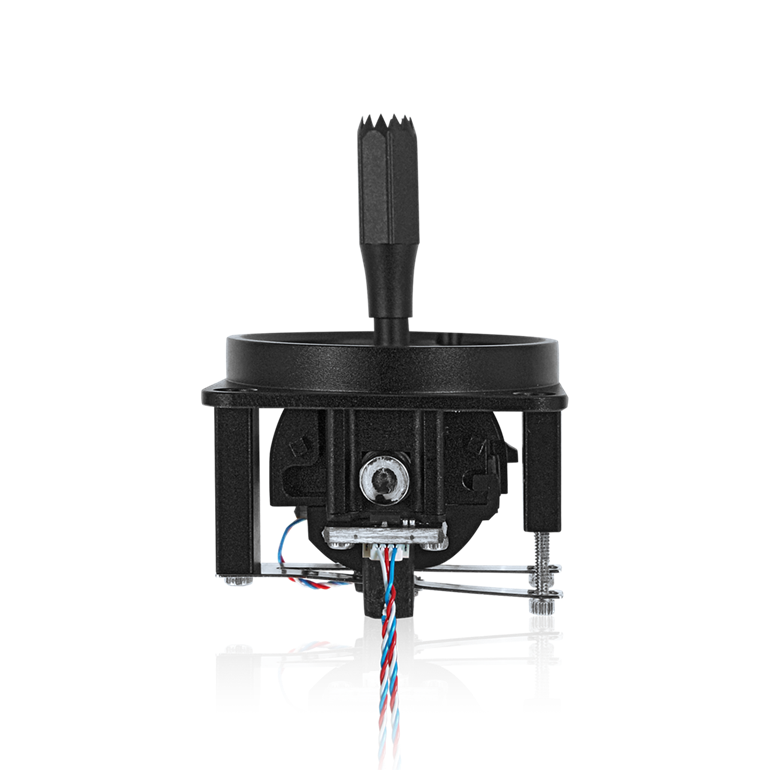

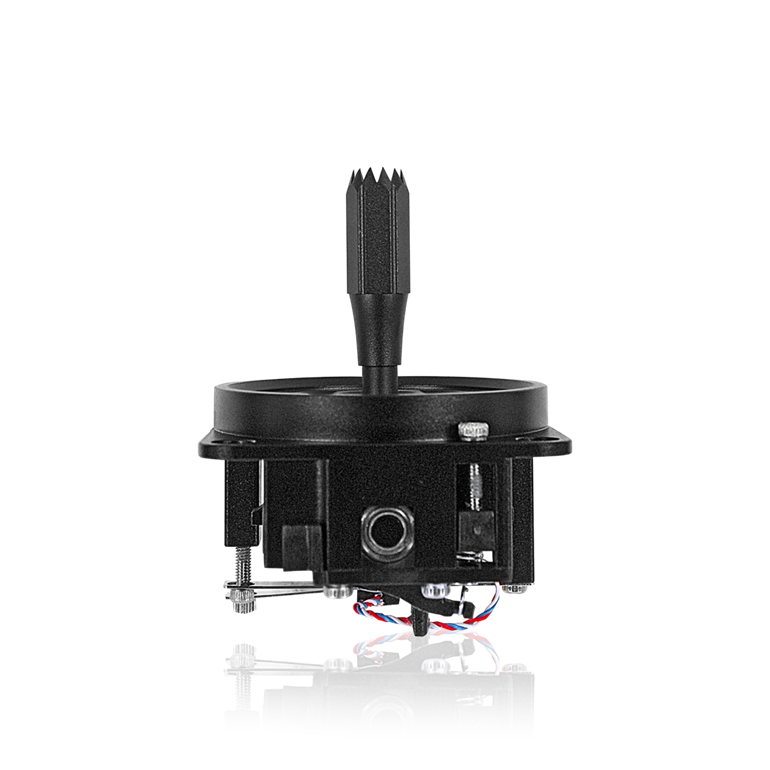

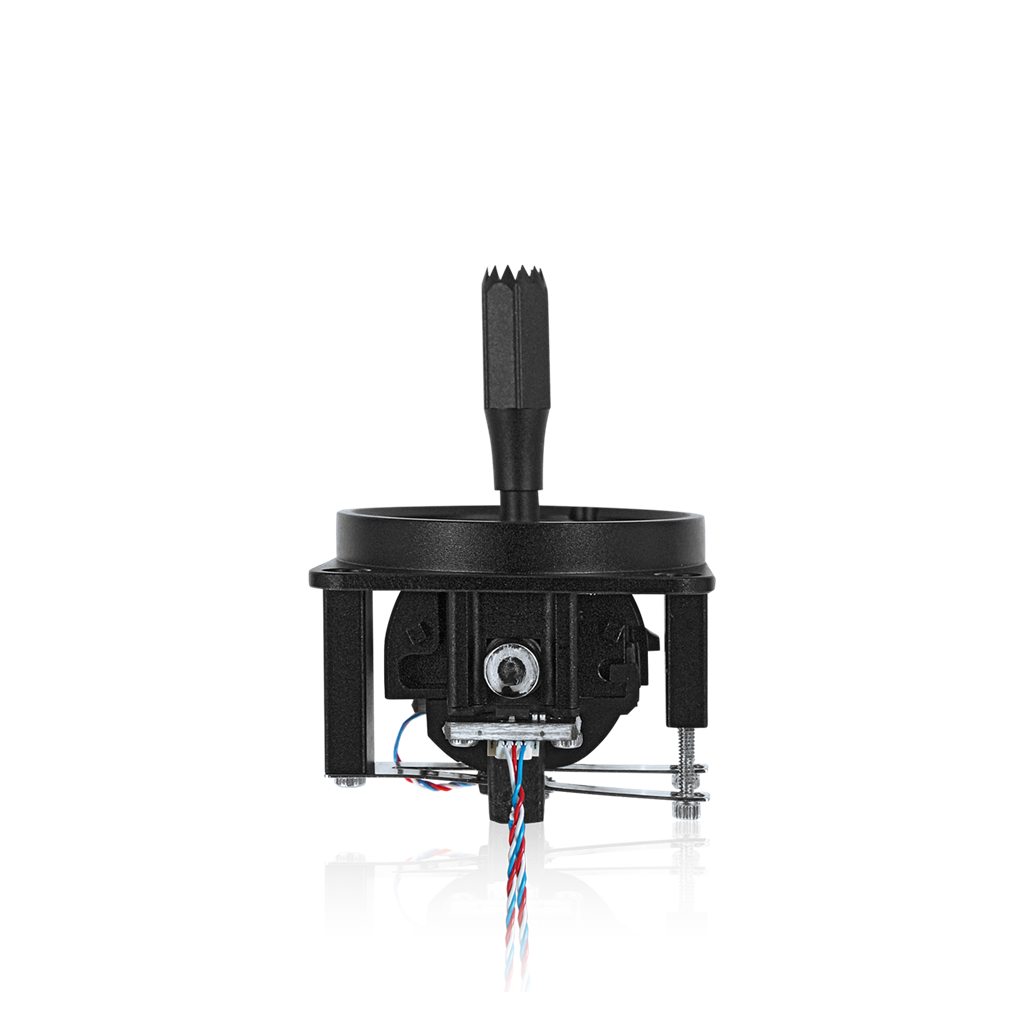

Spring tension, slide brake, throttle ratchet and Y-axis travel limit can be adjusted via easily accessible Allen screws from the top or bottom. This allows the gimbal to be individually adjusted even when installed, without having to open the transmitter or the controller box.
The length of the control stick can also be individually adjusted.
Made in Germany!
Data
| Operating voltage | 3.3V |
| Sensor type | Hall PWM |
| PWM min. | 40-80µs |
| PWM max. | 420-460µs |
| PWM Center | 240-260µs |
| PWM Frequency | 2kHz |
| X-axis travel | 50° (fixed) |
| Y-axis travel | 40-50° (adjustable) |
| Material | Aluminium, black anodised |
| Connection | JST ZH, 1.5 mm |
| Dimensions | 41 x 37 x 54 mm |
| Weight | 36 g |
| Temperature range | -40°C to 125°C |
