Cable Assortment

Premium MAXI Servo lead, 2x 0.5mm², 1 x 0.3mm² - 50 m

Order no.: 1010/5000
The Premium MAXI servo cable is the thicker variant of the familiar Premium servo cable.
126.00
incl. 19% VAT

Description

Features

Set contents

Videos

Description

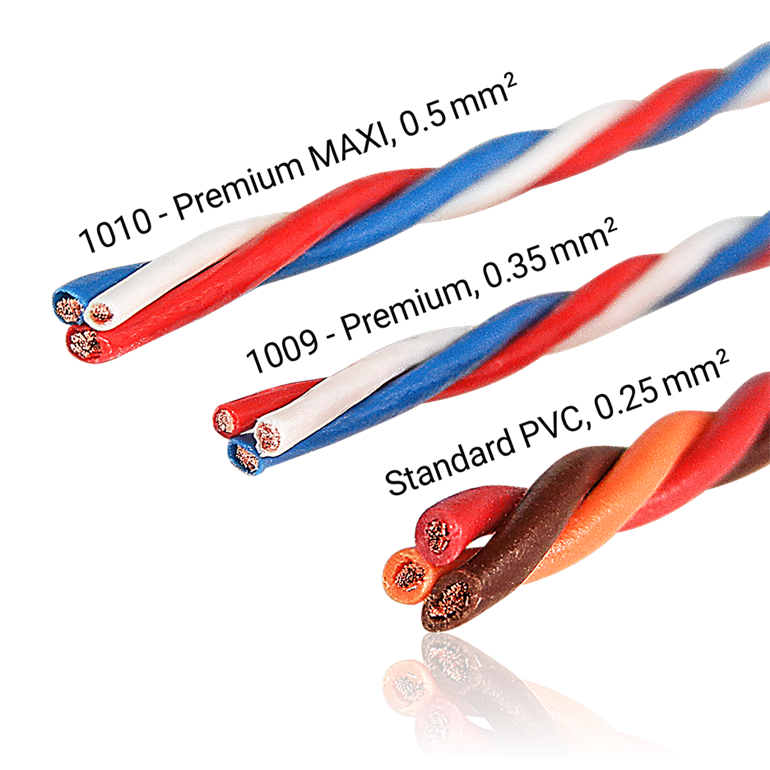

The Premium MAXI servo cable is the thicker variant of the familiar Premium servo cable. In this case thicker means that the current-bearing positive and negative conductors have a cross-sectional area of 0.5mm², while the signal conductors cross-section is 0.3mm² in order to save weight. This makes the Premium MAXI servo cable ideal for installations where relatively long leads have to be deployed in the wing or fuselage for high-performance servos.
This insulation produces a weight reduction of about 30% compared with the conventional PVC.
For comparison: in spite of its larger cross-section, the 0.5 mm² Premium MAXI servo cable offered here is lighter than standard 0.25 mm² PVC cable.

The insulation is fire resistant, and its heat resistance is much higher than the usual PVC.

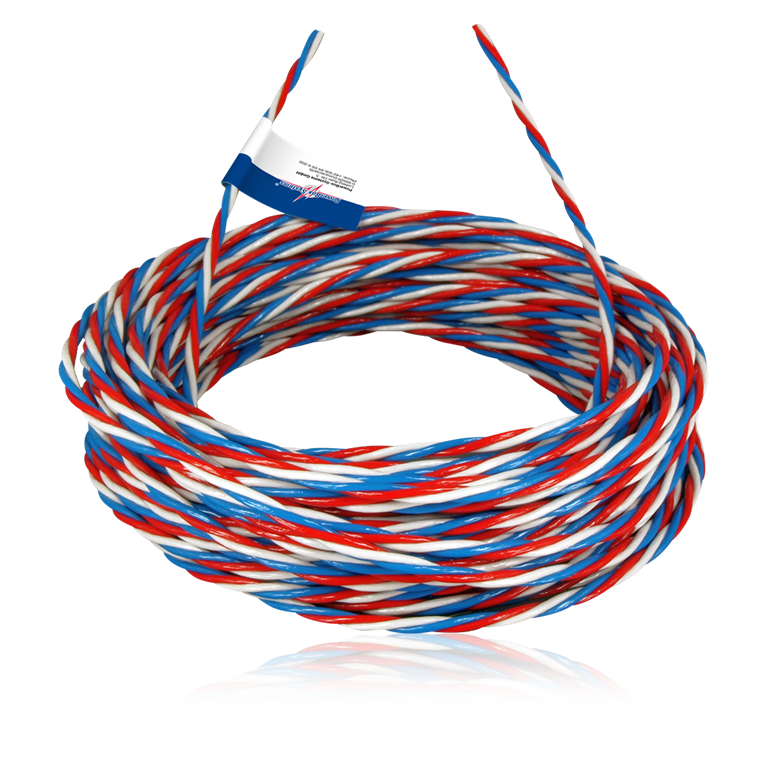

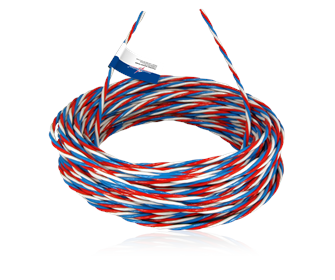

PowerBox Premium MAXI servo cable is available loose or in bundles. If you need different lengths, please contact us for a quote.

NOTE:
Our Premium cable is resistant to petrol, kerosene and other liquids commonly used in model flying, but it has limited resistance to UV radiation. Do not subject Premium cable to direct sunlight for protracted periods (for days).

Features

+ 2x 0.5mm² cross section (red and blue)
+ 1x 0.3mm² cross section (white)
+ 30% weight saving
+ only 14g/m
+ fire resistant
+ robust isolation
+ employed in full-size aviation

Set contents

+ Lenght: 50m
