PowerBox systems

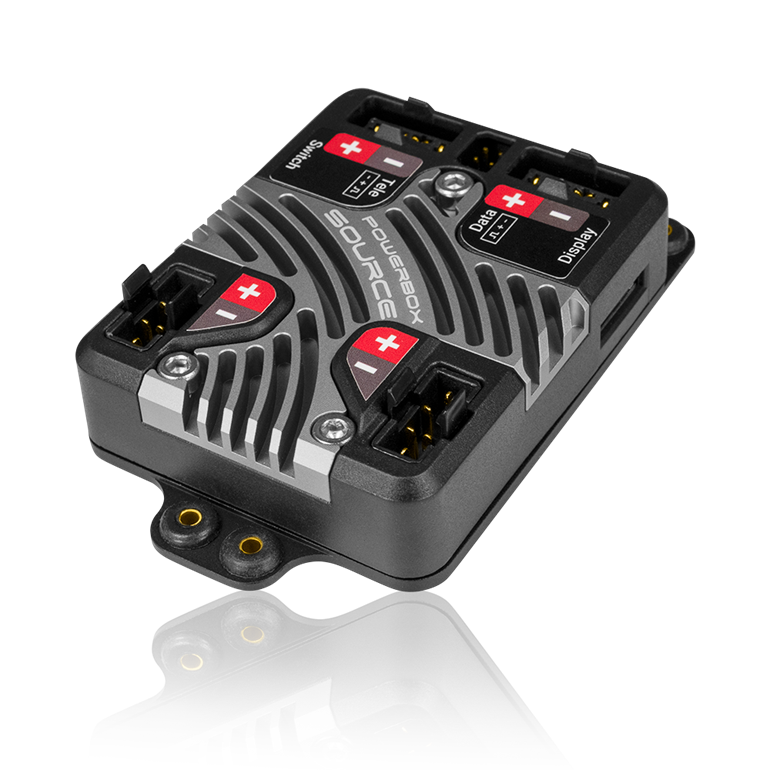

PowerBox Source

incl. OLED-Display and SensorSwitch

Order no.: 3420
The PowerBox Source is a capable powersupply, matching perfect with receivers with high-power inputs.
updateable updateable
Mag Sensor Mag Sensor
169.00
incl. 19% VAT

Description

Data

Features

Set contents

Downloads

Test reports

Description

The PowerBox Source is a logical development of the successful BaseLog, taking due account of requests from customers and modern telemetry system requirements. We have managed to reduce the backers size by optimising the heat-sink design, and as a result the PowerBox Source is now also suitable for small models with high power requirements. This small energy package offers enormous performance reserves, and compares very well even with larger battery backer systems.

The includes the small OLED screen which provides a display of all battery data even when the backer itself is inaccessible in the model. However, the full capability of the PowerBox Source can still be exploited even without the screen: the Data socket enables the user to access all settings with a laptop or PC using our USB interface.
ATOM/CORE pilots, in particular, can control all aspects of the PowerBox Source from the transmitter without any extra accessories.

Reflecting the current state of technology, all battery-relevant data can now be transferred to the transmitter via the telemetry system. The PowerBox Source can transfer telemetry data to Jeti, Graupner, Multiplex and Futaba transmitters as well as the ATOM/CORE telemetry system. An additional teleconverter is not required for Futaba.

The PowerBox Source can be set to any of four different output voltages: 5.9 V 7.4 V 7.8 V and unregulated; in the latter case the battery voltage is passed through with minimal loss. The MPX inputs and outputs are fitted with retaining clips / lugs to prevent the connectors slipping out when subjected to severe vibration.

Data

Operating voltage 4.0V - 9.0V
Power supply 2s LiPo, 2s LiIon, 2s LiFePo, 5s NiCd/NiMH
Current drain Power-on state 85mA
Current drain Standby 10µA
Maximum load current Peak 2x20A
Dropout voltage 0.3V
Output voltage 5.9V / 7.4V / 7.8V / 8.4V
Supported telemetry systems PowerBox, Jeti, Futaba, Graupner, Multiplex, JR
Screen OLED 128 x 64 pixels
Dimensions 54 x 88 x 23 mm
Weight 77 g
Weight Switch 15 g
Weight Screen 17 g
Temperature range -30°C to +85°C

Features

+ High performance
+ Optimised cooling
+ Small size
+ inclusive OLED-Display
+ Four different output voltages
+ Suitable for use with all battery types
+ Can be controlled by PowerBox ATOM/CORE, switch, MobileTerminal or USB interface
+ Supports six different telemetry systems: CORE P²BUS, Jeti EX-Bus, Futaba S.BUS2, Multiplex M-Link, Graupner + + + + Hott, JR DMSS
+ Redundant regulator design
+ Suppression of servo feedback currents
+ Protection against electro-static discharge
+ Integral regulator monitoring
+ Can be updated using the MobileTerminal or USB Interface

Set contents

+ PowerBox Source
+ SensorSwitch
+ OLED-Display
+ 2 PowerPatch-leads (1x MPX / MPX and 2x MPX / JR)
+ 4 rubber grommets and brass spacers
+ 4 retaining screws
+ Operating instructions in English and German
