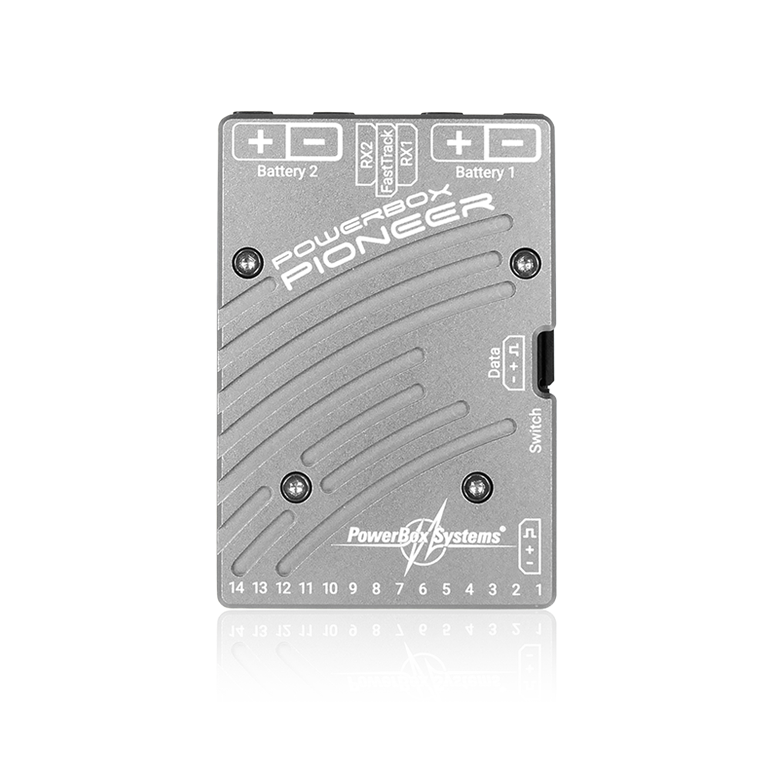

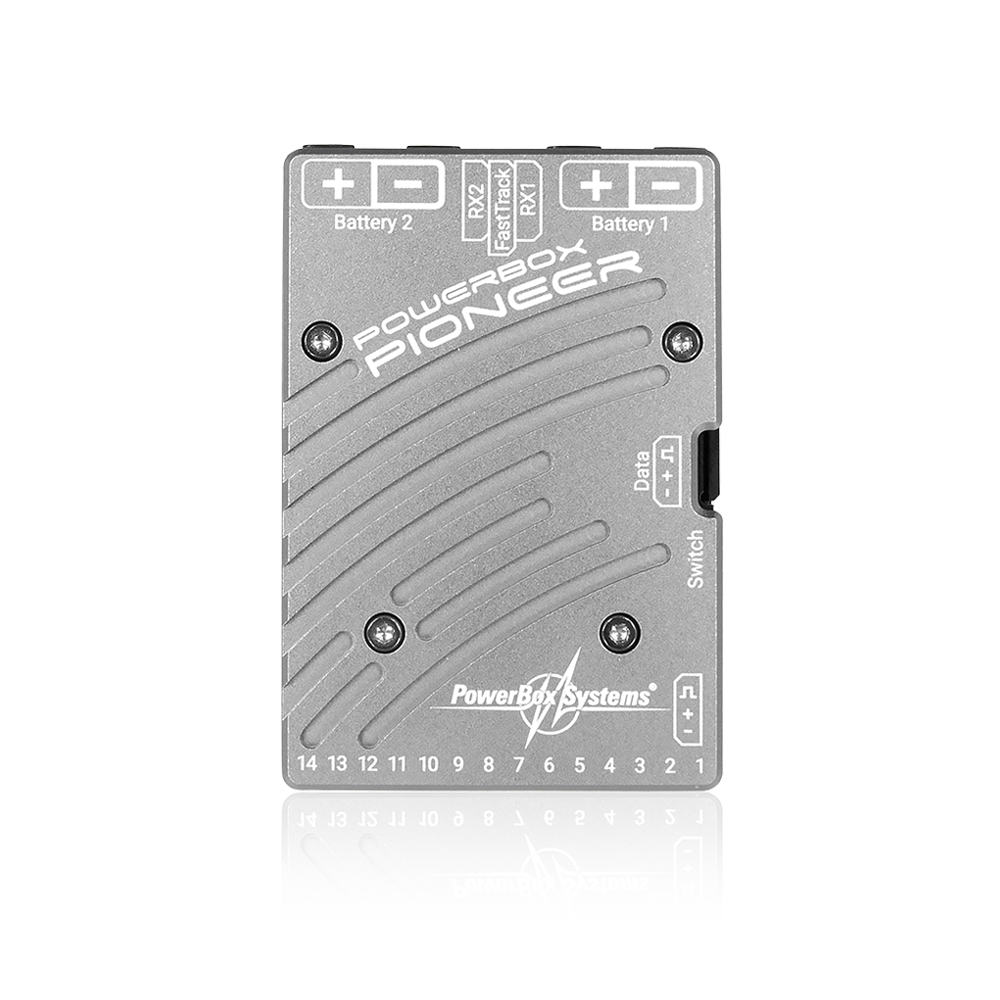

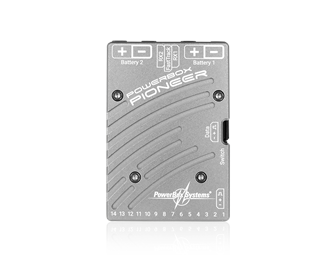

PowerBox Pioneer inkl. MicroSwitch

Order no.: 4100
The PowerBox Pioneer the perfect 14-channel power supply unit without voltage regulation, designed for HV servos.
updateable updateable
iGyro iGyro
Serial Receiver System Serial Receiver System
219.00
incl. 19% VAT

Description

Data

Features

Set contents

Downloads

Screenshots

Certificates

Description

The PowerBox Pioneer is the perfect 14-channel power supply unit without voltage regulation, designed for HV servos. Since the unit has no voltage regulators, nor the large heat-sink surfaces required for them, it offers ultra-compact dimensions. Even so, the Pioneer still provides redundancy, as is the standard for all power supply units made by PowerBox-Systems. The output section and the switch controller are duplicated in order to guarantee maximum security.

A feature which makes the Pioneer unique in its class is its integral iGyro technology, which requires only the optional iGyro SAT as sensor unit. When plugged in, the sensor transforms the power supply unit into a high-performance 9-axis gyro of the latest generation. The integrated iGyro is ultra-simple to use, and can be set up in just a few minutes, ready for the initial trimming flight. The Pioneer offers any number of facilities for fine-tuning, making it suitable for complex models and perfectionists. Stick priority, lock-in feel and gyro characteristics can be adjusted separately for each axis and for two ranges, to name just the most important of them.

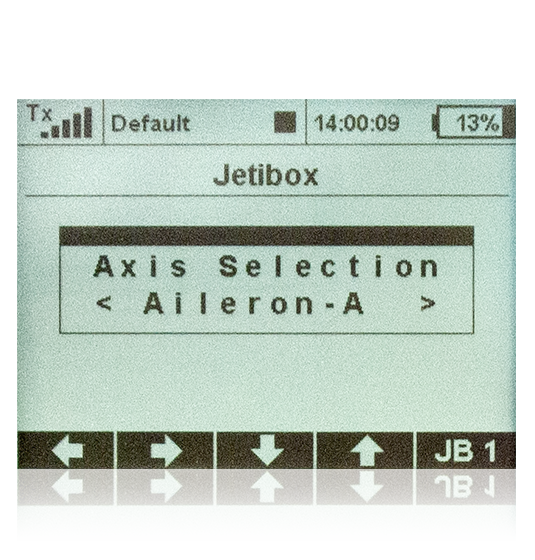

The whole package is rounded off by convenience and ease of operation, as PowerBox and Jeti pilots can set up and control all aspects of the Pioneer from the transmitter! Optionally - and for Futaba pilots - the Pioneer can be set up using Mobile Terminal, or using a PC in conjunction with the USB Interface Adapter.

In performance terms the compact Pioneer concedes nothing to the larger backers. Many series of tests have been carried out with a 40 A load for several minutes, and we guarantee a continuous current capacity of 20 A. The elegant aluminium heat-sink ensures the necessary heat dissipation, and even the external switch is supplied in a top-quality anodised aluminium case, machined from solid. As a further option, the new Pioneer is also available with the MicroMag magnetic switch. This switch can be installed visible or hidden and switched on with the included magnet.

Data

Operating voltage 4.0V - 9.0V
Power supply 2s LiPo, 2s Lilon, 2s LiFePo, 5s NiMH
Current drain Power-on state 105mA
Current drain Standby 30µA
Maximum load current Continuous 2x10A (<30s 2x 20A)
Dropout voltage 0.3V
Output voltage unregulated
Signal input serial
Supported RC systems PowerBox, Futaba, Jeti and Spektrum
Supported telemetry systems P²BUS, S.BUS2, EX-Tele, SRXL2
Receiver redundancy SRS
Channels 26
Servo sockets 14
Servo signal resolution 0.5µs
Gyro sensor type external iGyro SAT
Dimensions 63 x 44 x 12 mm
Weight 40 g
Weight Switch 8 g
Temperature range -30°C to +75°C

Features

+ 14 channels
+ High-performance battery backer with high continuous load capacity
+ Duplicated circuitry for the entire power electronics
+ Redundant electronic switch
+ All features can be controlled using PowerBox and Jeti transmitters
+ All systems can be operated using the Mobile Terminal or PowerBox USB Interface
+ Integrated iGyro technology of the latest type, with iGyro SAT as gyro sensor
+ Nine independent gyro outputs for: 3x aileron, 3x elevator, 3x rudder
+ Special regulatory algorithm for fixed-wing models
+ Detects all transmitter mixers
+ Ultra-simple gyro programming in just a few minutes

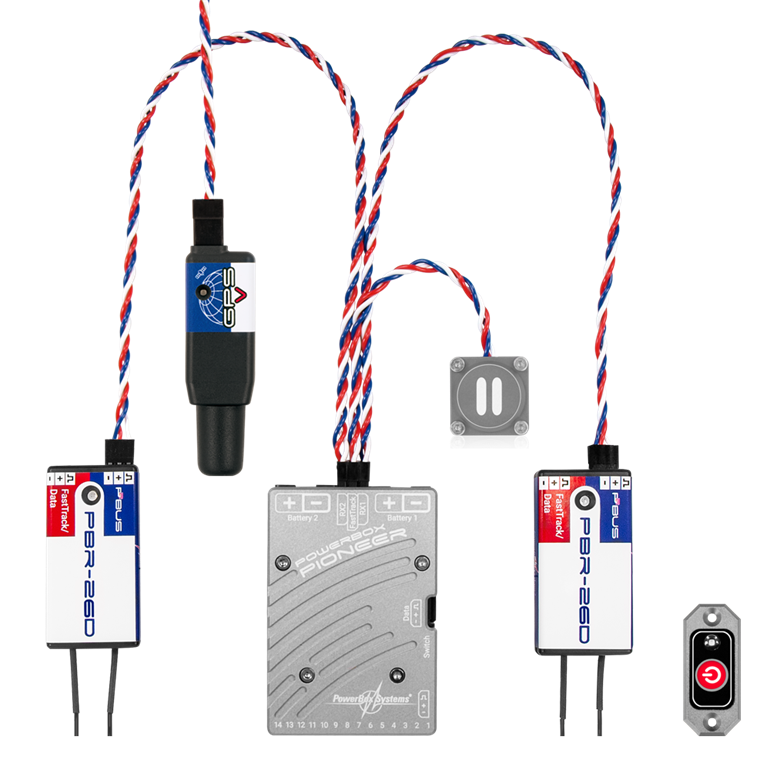

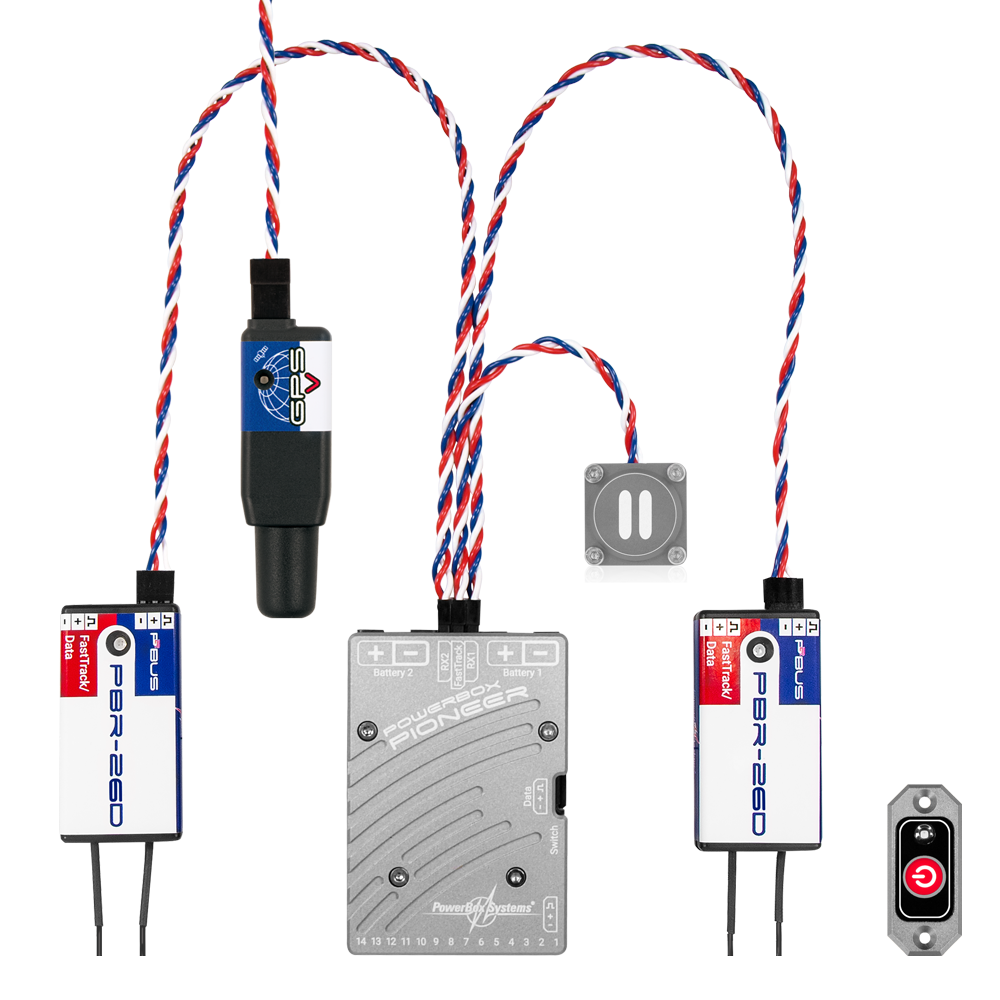

+ Optional with GPS or PBS-TAV for speed-dependent gyro compensation

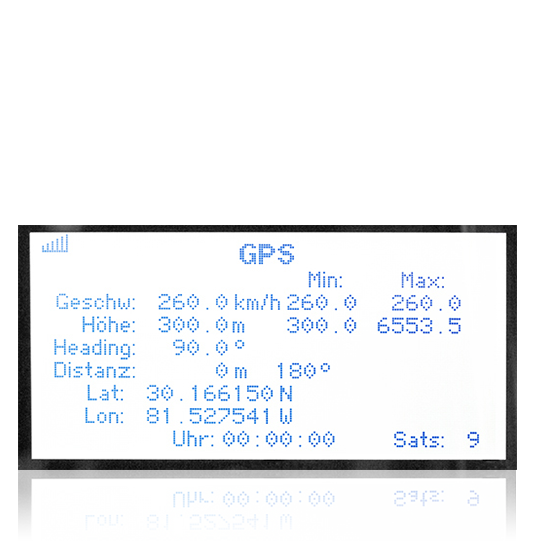

+ Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS and Spektrum SRXL2
+ Transmission of voltage, current, capacity, lost frames and holds
+ User-variable servo frame rate: 10 ms, 12 ms, 14 ms, 16 ms, 18 ms
+ Suppression of servo feedback currents
+ Ultra-modern 32-bit microprocessor ensures swift, accurate signal processing
+ Efficient heat dissipation via the high-quality machined and anodised aluminium case
+ Machined and anodised aluminium switch housing
+ Space-saving low-profile format
+ Ultra-lightweight construction
+ Can be updated using the PowerBox USB interface or Mobile Terminal

Set contents

+ PowerBox Pioneer
+ MicroSwitch
+ 2 patch leads 22 cm
+ 2 retaining screws
+ Adhesive tape
+ Operating instructions in English and German
