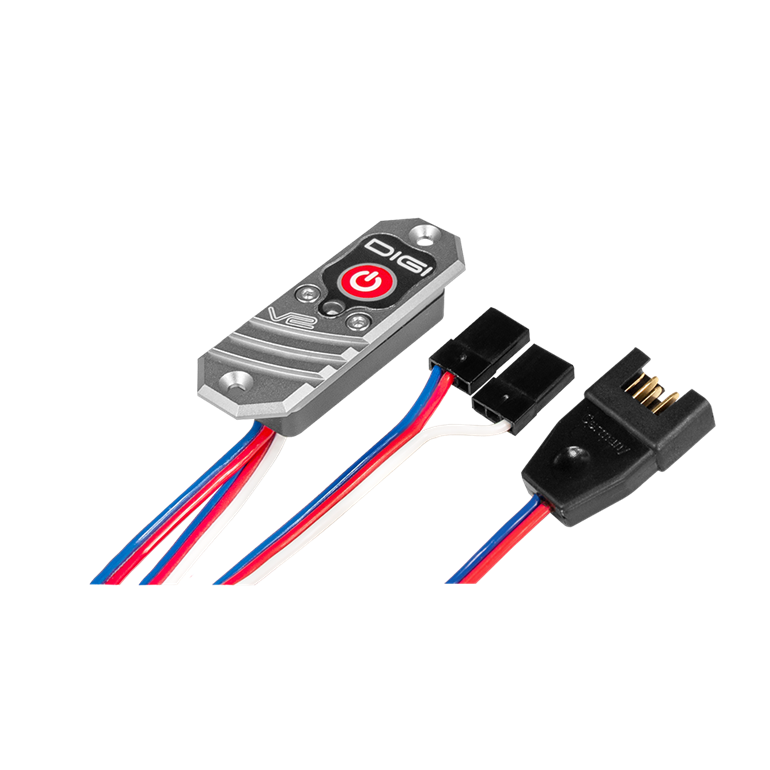

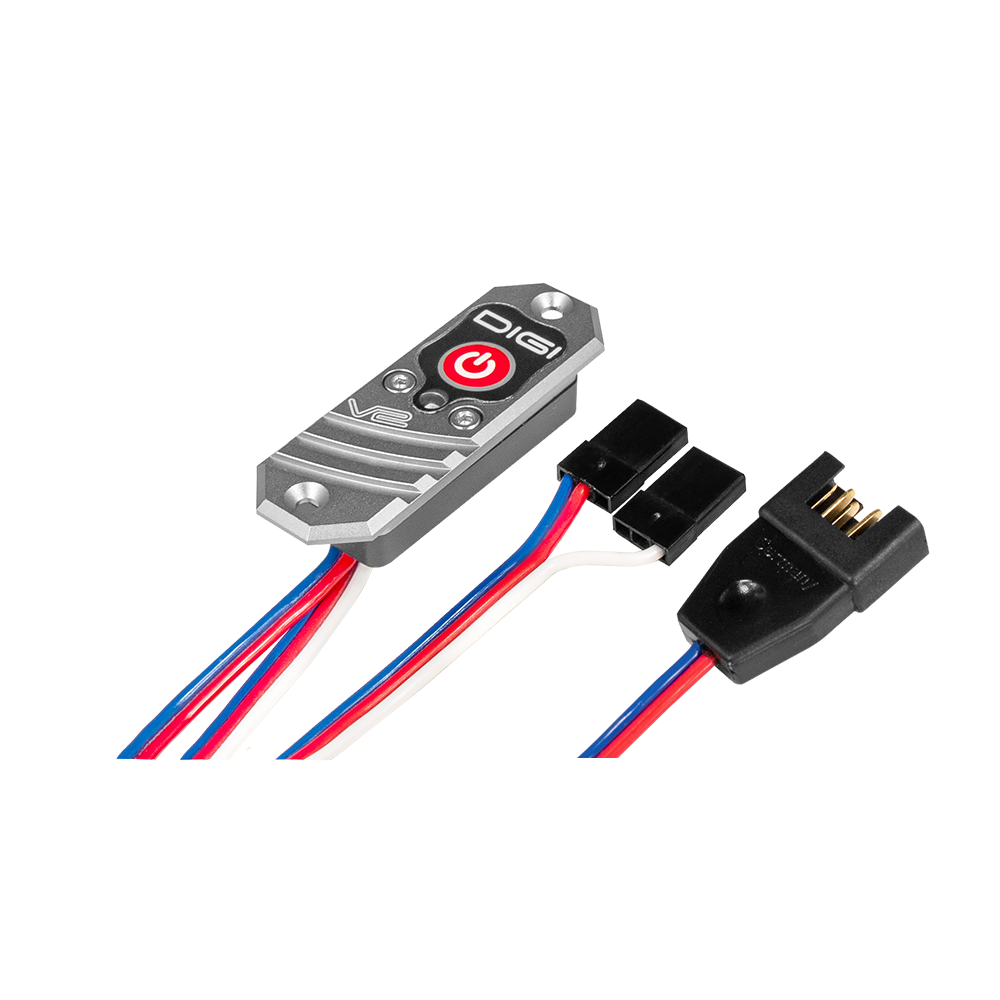

DigiSwitch V2 - MPX/JR connectors

Order no.: 6432

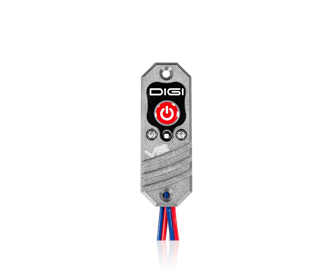

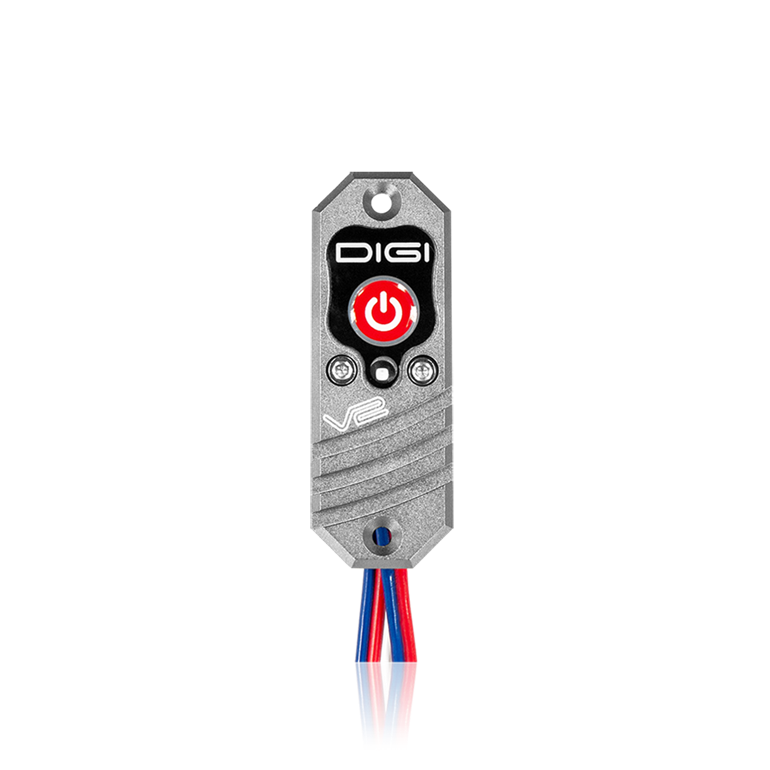

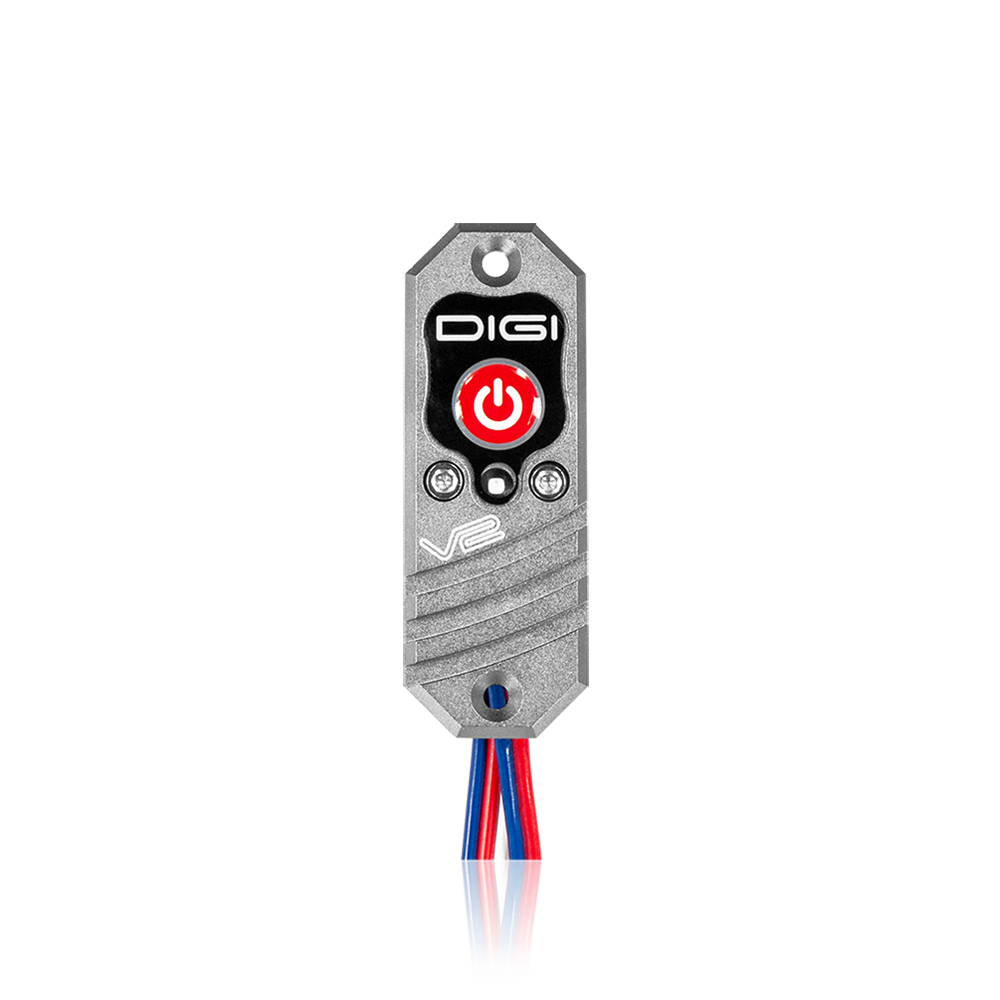

The PowerBox DigiSwitch V2 is the second generation of the PowerBox Digi-Switch, which is well-known throughout the world.
59.00
incl. 19% VAT

Description

Data

Features

Set contents

Downloads

Description

The PowerBox DigiSwitch V2 is the second generation of the PowerBox Digi-Switch, which is well-known throughout the world. For almost fifteen years the PowerBox DigiSwitch has represented the standard for small to medium-sized models thanks to its compact format and versatility.
By using the latest components we have been able to reduce the size of the Digi-Switch V2 by about 20 %.

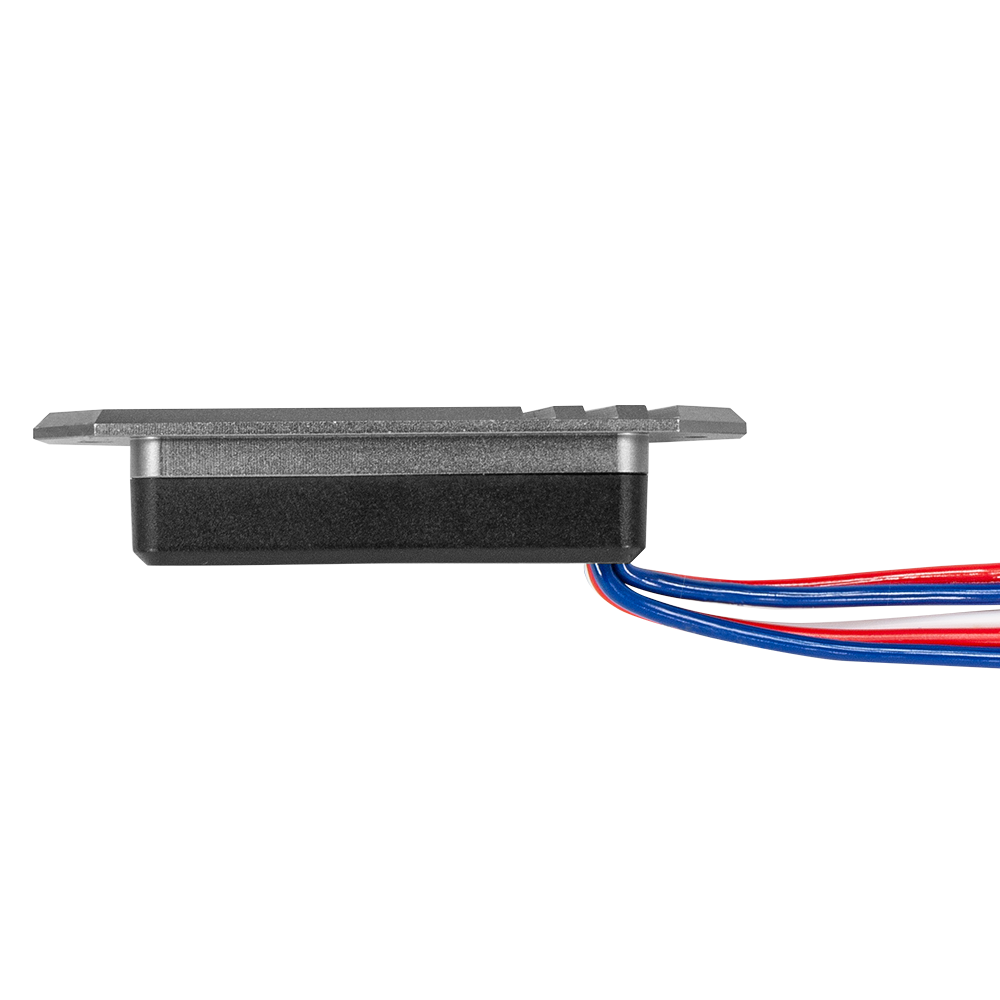

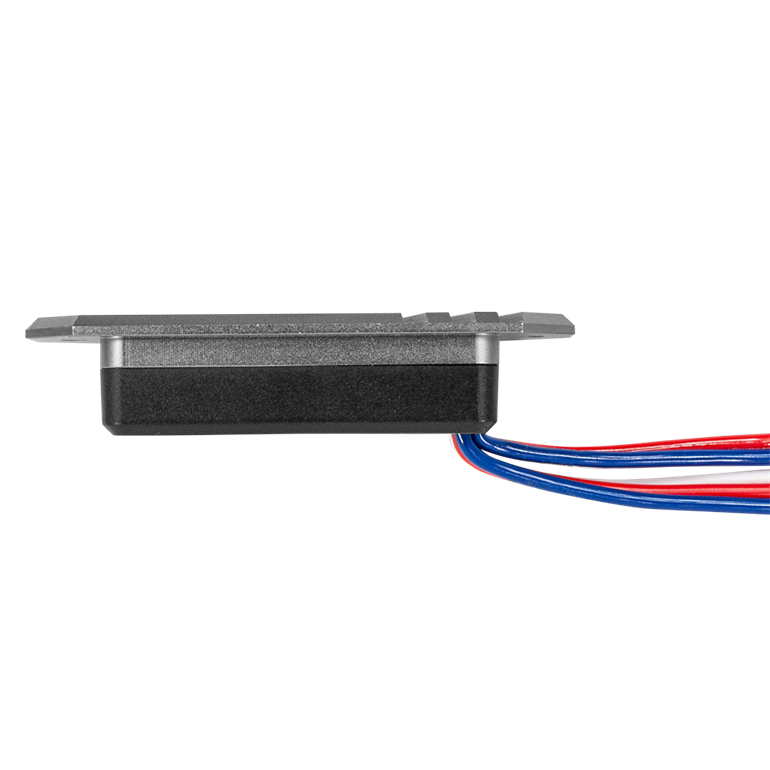

The introduction of a top-quality aluminium case, machined and anodised, has brought a substantial increase in the units cooling efficiency, with the result that the maximum continuous current capacity of the PowerBox DigiSwitch V2 is around 20 % higher. In fact, the peak load capacity is twice as high: the DigiSwitch V2 can handle more than 10 A for several seconds!

The DigiSwitch V2 offers four user-selectable output voltages: for normal servos it can be set to a regulated 6.0 V, regulated voltages of 7.0 V and 7.6 V are available for HV servos, as is an option for non-regulated voltage.
Power to the unit can be drawn from four different battery types: LiPo, LiIon, LiFePo, NiMH. Ultra-bright RGB LEDs are fitted to indicate battery voltage; they light up in various colours to display the charge status of the batteries.

ATOM/CORE users also benefit from one special additional feature: the battery voltage and regulator voltage can be displayed directly at the transmitter via telemetry!

Data

Operating voltage 4.0V - 9.0V
Power supply 2s LiPo, 2s LiIon, 2s LiFePo, 5s NiMH
Current drain Power-on state 23mA
Current drain Standby 4μA
Maximum load current max. 10A
Dropout voltage 0.1V
Output voltage 6.0 V / 7.0 V / 7.6 V / unregulated
Dimensions 50 x 18 x 11 mm
Weight 15 g
Temperature range -30°C to +75°C

Features

+ High-performance electronic switch
+ Ultra-light unit, compact format
+ Regulated output voltage
+ User-selectable output voltage: 6.0 V/7.0 V/7.6 V or non regulated
+ RGB LED voltage indicator for the battery
+ Telemetry support for ATOM/CORE systems+ Supports 4 different battery types: 2s LiPo, 2s LiIon, 2s LiFePo and 5s NiMH+ Regulator monitoring
+ Suppression of servo feedback currents

Set contents

+ PowerBox DigiSwitch V2
+ 2x retaining screws
+ Operating instructions in English and German
