PBS-V60

Order no.: 6620

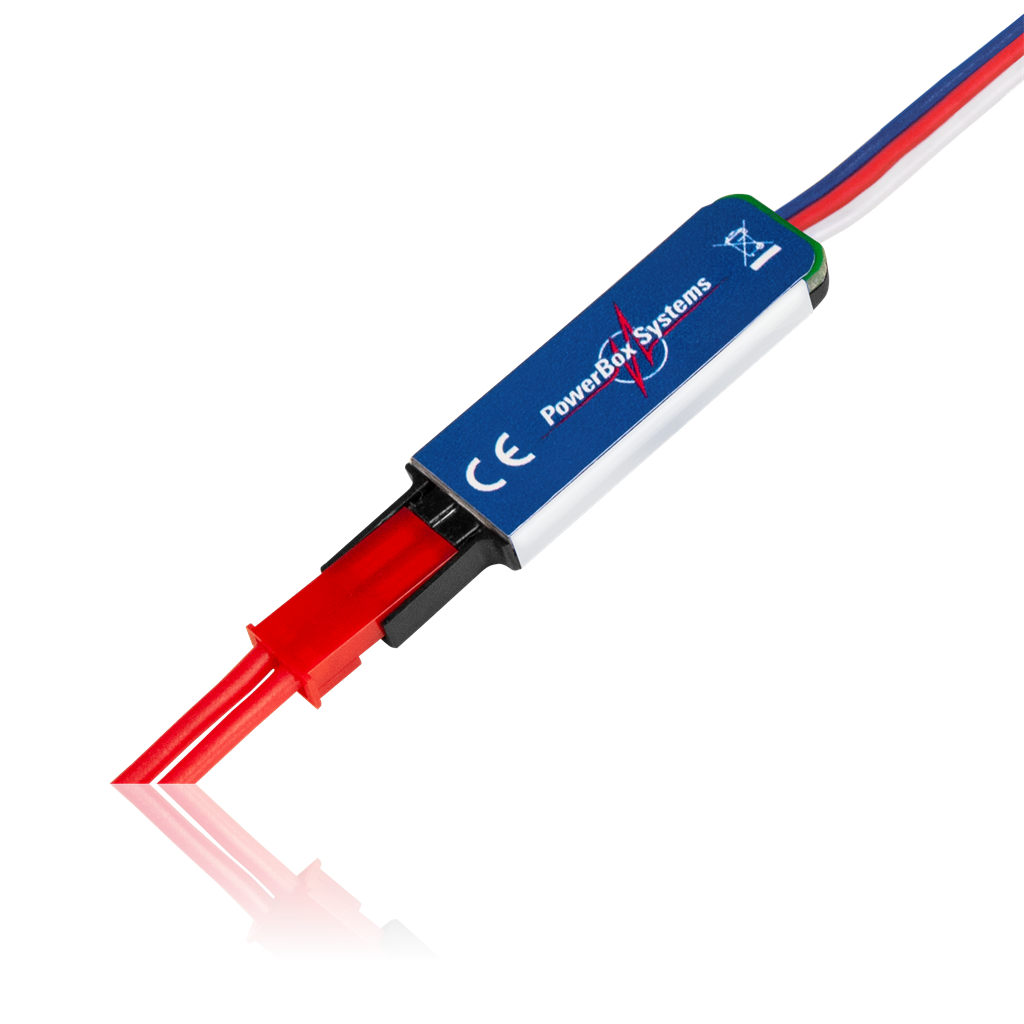

The PBS-V60 is a small, lightweight voltage sensor which we have developed for use with the PowerBox ATOM/CORE, but is also suitable for use with other telemetry systems.
27.90
incl. 19% VAT

Description

Data

Features

Downloads

Description

The PBS-V60 is a small, lightweight voltage sensor which we have developed for use with the PowerBox ATOM/CORE, but is also suitable for use with other telemetry systems currently on the market. The sensor is simply plugged into the receivers Telemetry input socket. A cable is supplied for connection to the battery; this is simply soldered or plugged into the battery connector or balancer connector.

The voltage of a rechargeable battery is a very reliable indicator of its state of charge, since the load on the battery and its age do not affect the voltage threshold at which the battery is flat. The PBS-V60 is so compact and light that it can even be used in small models. The PBS-V60 can measure up to 60V.

The sensor can be connected to various telemetry systems; the system is automatically detected, making the PBS-V60 Plug'n'Play

Data

Operating voltage 4.0V - 9.0V
Current drain Power-on state max. 20mA
Supported RC systems PowerBox, Jeti, Multiplex, Graupner, Futaba
Dimensions 40 x 10 x 4 mm
Weight 4 g
Temperature range -30°C to +85°C

Features

+ Voltage measurement up to 60V
+ Compact size
+ Low weight
+ Supports the following telemetry systems: PowerBox, Jeti, Multiplex M-Link, Graupner HoTT, Futaba
