Magic Jeti Switch - version 2

Order no.: 5612

It forms the ideal complement to any PowerBox system which is installed in an inaccessible location.

fits for: Royal SRS/SR2, Champion SRS, Mercury SRS/SR2, Competition SR2/SHV, Source

32.90
incl. 19% VAT

Description

Data

Downloads

Certificates

Videos

Description

The Magic Jeti Switch makes it possible to switch any PowerBox on and off from the transmitter. It forms the ideal complement to any PowerBox system which is installed in an inaccessible location, or in a model where an external switch is not desirable.

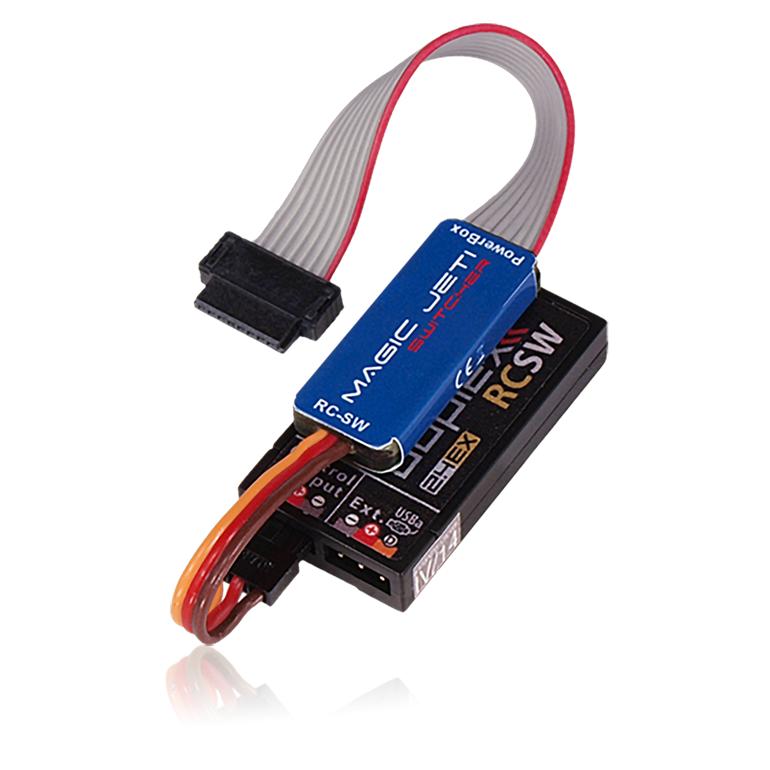

The Magic Jeti Switch is stuck to the Jeti RCSW and connected to it, producing a compact, wireless switching unit which takes the switching signal from the Jeti RC-Switch and translates it for the PowerBox. At the transmitter the switching process can be triggered using any switch, and confirmed on-screen with a button. This procedure eliminates the possibility of switching the model off accidentally. You can also set audible confirmation for the switching process by means of an audio file (download in our forum).
The combination of Jeti RCSW and Magic Jeti Switch draws a very low idle current (< 200 µA), but nevertheless we recommend that you disconnect the switch from the PowerBox if flying is unlikely for a protracted period, e.g. over the Winter.

The Magic Jeti Switch is available in two versions:
Version 1, Order no. 5610 fits for: Evolution, Professional, Cockpit, Competition, Cockpit SRS, Competition SRS, Baselog
Version 2, Order no. 5612 fits for: Royal SRS und Royal SR2, Champion SRS, Mercury SRS and Mercury SR2, Competition SR2, Source

Data

Power supply PowerBox
Current drain Power-on state 4mA
Current drain Standby 100µA
Signal input Jeti RCSW
Dimensions 30 x 12 x 4 mm
Weight 5 g
Temperature range -30°C to +75°C
